Polycarbonate roofing sheet ARCOPLUS® SUPER 1000

translucentcorrugated

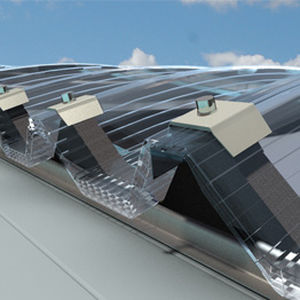

arcoPlus®SUPER1000 is a modular corrugated system consisting of 5-wall co-extruded multiwall polycarbonate panels, with variable thickness 13-20mm, perfectly overlapping longitudinally and allowing to obtain both continuous roofs and ridge-eaves skylights. Taking into account the linear thermal expansion of polycarbonate, the maximum recommended usable length is 5,000mm to avoid cracks at the through fastening elements. For longer pitch lengths, it is preferable to use several overlapping panels. Features Thermal insulation - 1,8 W/m 2 K Acoustic insulation - 18 dB Linear thermal expansion - 0,065mm/m°C Temperature range - -40°C +120 °C U.V. rays protection - Coextrusion Fire reaction EN 13501-1 - EuroClass B-s1,d0 Min. bending radius - 3,3m -6,0m MIN slope (skylight) - 5% MIN slope(Continuous Roofing) - 7% Light transmission (τv) - crystal 65% Advantages High load resistance Light transmission Longitudinal overlap Resistance to UV rays and to hail Thermal insulation Thermowelded panels' edge Transverse overlap
