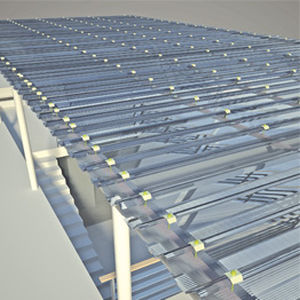

Corrugated polycarbonate panel arcoPlus® 1000

for roofwith UV protectiontranslucent

arcoPlus1000® is a modular corrugated system consisting of 3-wall co-extruded multiwall polycarbonate panels, with variable thickness 8-12mm, perfectly overlapping longitudinally and allowing to obtain both continuous roofs and ridge-eaves skylights. Maximum usable length 5,000mm Features Thermal insulation - 2,7 W/m²K Acoustic insulation - 16 dB Linear thermal expansion - 0,065mm/m°C Temperature range - -40°C +120 °C U.V. rays protection - Coestrusione Fire reaction EN 13501-1 - EuroClass B-s1,d0 Bending radius - 3,3mm - 6,0 mm MIN slope( skylight) - 5% MIN slope(Continuous Roofing) - 7% Light transmission(τv) - crystal 70% Advantages High load resistance Light transmission Longitudinal overlap Resistance to UV rays and to hail Thermal insulation Thermowelded panels' edge Transverse overlap
