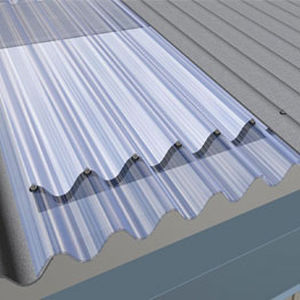

The arcoPlus®Onda Curvo system allows for the creation of continuous translucent roofing or can be used, by means of lateral overlapping, with curved fibre cement sheets or insulating panels with a bending radius of R.3,500mm. The arcoPlus®Onda profile must be installed with the UV protected side facing outwards, in order to keep the optical and mechanical properties of the material unchanged over time.
Features
Thermal insulation - 3,2 W/m²K
Acoustic insulation - 16 dB
Linear thermal expansion - 0,065mm/m°C
Temperature range - -40°C +120 °C
U.V. rays protection - Coextrusion
Fire reaction EN 13501-1 - EuroClass B-s1,d0
Advantages
Easy and low-cost installation
High load resistance
Light transmission
Longitudinal overlap
Resistance to UV rays and to hail
Thermal insulation
