Corrugated polycarbonate panel arcoPlus®MiniGreca

for roofwith UV protectiontranslucent

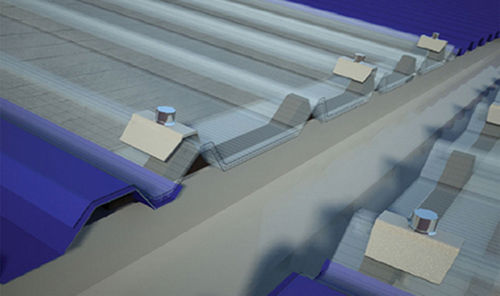

The arcoPlus® miniGreca5 system allows for the creation of continuous translucent roofs and skylights with eaves combined with grey panels for roofs. Taking into account the linear thermal expansion of polycarbonate and to avoid any cracks at the through fastening elements, a maximum usable length of 5,000 mm is recommended; for greater pitch lengths, the special design of the profile makes the panels perfectly overlappable, allowing for the creation of overlaps at the underlying supports. Features Thermal insulation - 3,0 W/m²K Acoustic insulation - 16 dB Linear thermal expansion - 0,065mm/m°C Temperature range - -40°C +120 °C U.V. rays protection - Coextrusion Fire reaction EN 13501-1 - EuroClass B-s1,d0 Advantages Light transmission Longitudinal overlap Resistance to UV rays and to hail Thermal insulation Thermowelded panels' edge Transverse overlap
