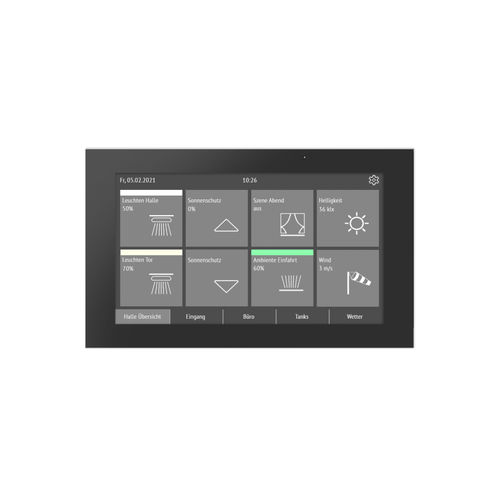

The Fabro KNX Touch Panel is an operating and display panel with IP 66 protection for the KNX building bus system. A robust aluminium housing protects the 7-inch screen with real glass touch surface. 8 areas can be displayed on each of 5 display pages. Texts, values, a symbol and a colour field are displayed in each area. Functions with objects from 1 bit (switching) to 14 bytes (text) are assigned to the areas. In the application, 8 AND and 8 OR logic links as well as 8 multifunction modules for calculation, conditions and data conversion are available. 8 alarm input objects can trigger text displays or beeps on the Fabro KNX. Medium - TP1-256 Configuration mode - S-Mode Group addresses max - 1024 Assignments max. - 1024 Communication objects - 336 Nominal voltage (Potenzial ≠ Hilfsspannung) - 30 V SELV Power consumption max. - 10 mA Wire red - KNX + Wire black - KNX - Duration after bus voltage restora tion until data is received approx. - 4 s Medium - TP1-256 Configuration mode - S-Mode Group addresses max - 1024 Assignments max. - 1024 Communication objects - 336 Nominal voltage (Potenzial ≠ Hilfsspannung) - 30 V SELV Power consumption max. - 10 mA Wire red - KNX + Wire black - KNX - Duration after bus voltage restora tion until data is received approx. - 4 s Specification - DIN EN IEC 61558-1 (VDE 0570-1):2019-12 Nominal voltage - 24 V ±20% SELV Power consumption max. - 140 mA Wire yellow - + Wire white - -
