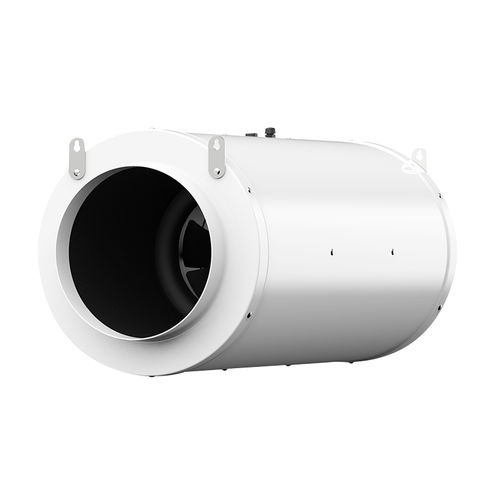

Duct fan Jetflow Silent SJMF

commercialhomeindoor

Silent Inline Mixed Flow Circular Fan • 4 standard sizes from 150mm to 315mml • Air volume flow rates up to 0.794 m¾s • Static pressures up to 434 Pa • Suitable for operating temperatures up to +60°C • Acoustic design for low noise levels • Available in EC Overview Inline mixed flow circular fans with EC motors for low power consumption at high performance. Features and Benefits Motor / Impeller High efficiency jet design double mixed flow impeller integrated and directly driven by Brushless EC motor. The IPX4 motor contains sealed for life heavy duty NWB bearings. All motors are suitable for use in ambient air conditions up to +60°C. Detachable Bracket Detachable brackets on models 150 to 315mm for ease of installation. Full Speed Operation Supplied suitable for fixed speed operation, control options achieved by removing the 3.5mm Jack plug hub and fitting supplied cable. Speed Control A Detachable 5 metre lead with 3.5mm jack connection to unit is supplied for connection to a remote potentiometer, 0-10VDC or PWM Circuit. A potentiometer controller is available for manual control. Electrical Connection Easy Installation, fitted with a 1.5 metre Mains lead complete with BS1363-1 UK 3-pin plug BS1361 fuse 3A, convenient for connecting to electrical sockets and providing a means of isolation / disconnection. Low Energy Low power consumption at high performance resulting in Low Specific Fan Powers for Building Regulation Compliance. Warranty Each SJMF has a 24 month warranty.
