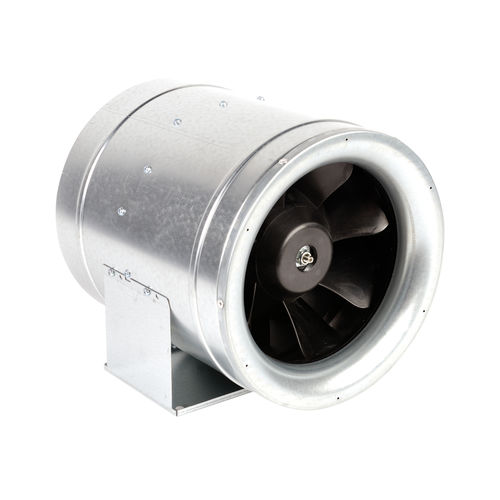

Centrifugal fan Multiflow SEL

free-standingcommercialindoor

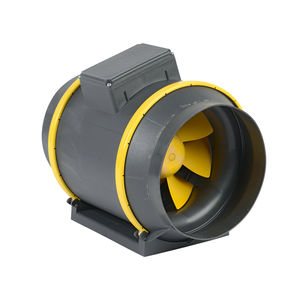

Mixed Flow Inline Fan • 8 standard sizes from 250mm to 710mm • Air volume flow rates up to 5.67 m% (AC) • Static pressures up to 1290 Pa (AC) / 1400 Pa (EC) • Suitable for operating temperatures up to +80°C • Available in AC & EC Overview The Multiflow SEL is a duct mounted mixed flow fan incorporating state of the art impeller and guide vane design to provide very high performance and efficiency. Features and Benefits Intelligent Design 3D stator guide vanes are used to recover dynamic pressure loss which results in turbulent pressure being turned into useful pressure. This is coupled with optimum tip clearance between the impeller and case to maximise flow rate creating improved efficiencies. Easy Installation Fans are supplied with an integral IP44 terminal box. An integral mounting bracket allows quick installation. Space Saving Outstanding design allows for smaller diameter units to be utilised whilst still achieving the same required airflow. The range is perfect for projects where space is at a premium through the use of smaller ducting, reducing overall system costs. Efficient Performance The high efficiency diagonal mixed flow impeller delivers maximum efficiency and operational performance offering a significant reduction in the running costs against a comparable centrifugal fan. Weather Resistance Weatherproofed to IPX4. Warranty Each SEL has a 12 month warranty.
