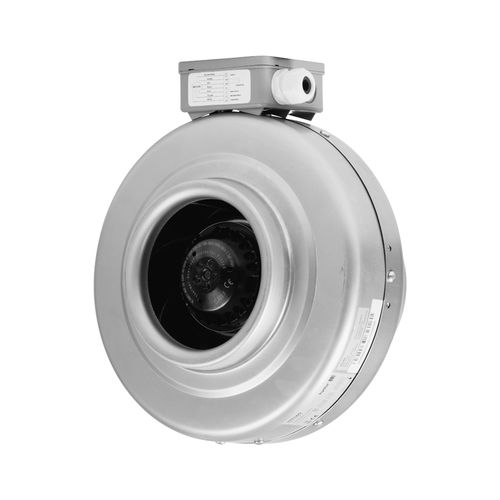

Centrifugal fan Versaline VL

recessedcommercialindustrial

Centrifugal Inline Fan • 6 standard sizes from 100m to 315mm • Air volume flow rates up to 0.34 m%/s • Static pressures up to 484 Pa • Suitable for operating temperatures up to +50°C • Available in AC Overview All metal inline centrifugal fans which are ideally suited to a wide range of commercial and industrial applications. They provide the ideal solution for high performance requirements in low airflow, medium pressure systems. Features and Benefits Easy Installation All models are designed for direct connection to standard diameter flexible or rigid circular ducting with 25mm long spigots for ease of connection. The integral mounting bracket provides a fast, simple approach to fixing the fan in position. Space Saving A compact casing design, combined with high performance makes the product ideal for ceiling void mounting. Efficient Performance The single inlet, single width backward curved centrifugal impeller is designed to be non overloading and self cleaning ensuring efficiency. Warranty Each VL has a 12 month warranty.
