Surface mounted downlight SKIM PANLENS

LEDroundcylindrical

Skim Panlens is a compact, cost-effective family of surface-mounted luminaires for ambient general lighting. Its reduced cylindrical housing emphasizes lighting effect over fixture presence, and the new lens is made from 100% recycled PMMA to lower raw material use and product carbon footprint.

Special features

• >120 lm/W (high luminaire efficacy; some configurations >140 lm/W)
• UGR < 19 (reduced glare for office and general lighting)
• Wide, rotationally symmetrical beam for efficient ambient illumination

Design & sustainability

• Minimal cylindrical housing for discreet architectural integration: "light instead of luminaires" approach
• Lens manufactured from 100% recycled PMMA (recyclate) using an internal circular process to reduce indirect emissions and material demand

Sizes (examples)

• Size 5 — Diameter: 193 mm; Luminaire flux: 1601 – 2922 lm; Connected load: 12.9 W – 20.2 W

Applications / Lighting effect

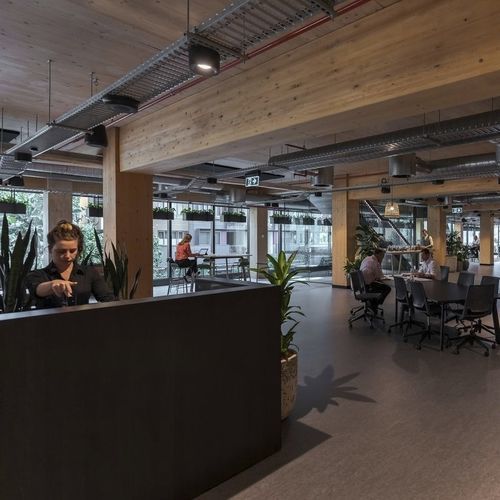

• Surface-mounted downlights providing a wide, rotationally symmetrical beam for uniform general lighting
• Also available as a recessed variant for seamless ceiling integration
• Suitable for budget-sensitive refurbishments and new installations aiming for low power density (< 3 W/m² typical)

Downloads

• Product images (ZIP) and product brochure (PDF) available from ERCO downloads for planning and media

Technical characteristics / specifications

• Construction size: 5 / 193 mm
• Connected load: 12.9 W – 20.2 W
• Luminous flux of the luminaire: 1601 lm – 2922 lm
• Light distributions: 2 (e.g. Wide flood, Extra wide flood)
• Lens material: 100% recycled PMMA
• Typical application: efficient ambient/general lighting at low power density (< 3 W/m²)
