Surface mounted downlight ATRIUM DOPPELFOKUS

LEDcylindricalfor public building

Overview

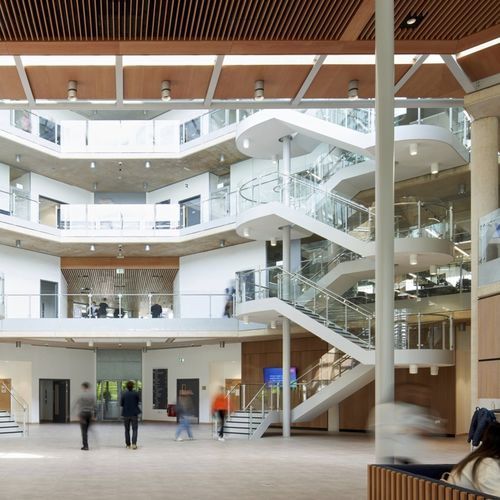

The ERCO Atrium double focus are surface-mounted downlights designed for precise, high‑lumen illumination from large heights in foyers, theatres, lecture halls and other high rooms. The range focuses light accurately to avoid spill and offers optical and housing options to maximise visual comfort and lumen output.

Special features

• High visual comfort through specialised housing geometry and quality optical components
• Large lumen packages to achieve high illuminances while maintaining glare control
• Optimised for installation in rooms with high ceilings to prevent unwanted spill light

Product description

• Cylindrical surface-mounted housing with a light‑tight ventilation gap as a design element
• Narrow downlight distributions (precise downlight projections) optimised for illumination from large heights; available beam shapes: Flood and Wide flood
• Available within the Atrium family as surface-mounted downlights (this variant), pendants and recessed versions; pendant variants can include an optional indirect uplight
• Optional anti‑glare cone in black or silver to reduce visual glare
• In‑house developed control gear ensures uniform behaviour of luminaire groups and supports dimming via common control options including DALI

Product features in detail

• ERCO Spherolit lens: light distributions available as Flood or Wide flood
• ERCO LED module: high‑power LEDs with collimating lens made of optical polymer; available colour temperatures: 2700K, 3000K, 3500K, 4000K
• Cylinder: aluminium profile, powder‑coated; cone in polymer (black); housing colours: White (RAL9002), Black or Silver (optionally with matt silver interior)
• Control gear options: switchable, phase‑dimmable (compatible with external trailing‑edge dimmers) or DALI dimmable

Technical specifications

• Brand: ERCO
• Denomination: Atrium double focus
• Light distributions: Flood, Wide flood
• Typical luminaire wattages (surface-mounted downlights): 24.2 W – 74.9 W
• Typical lumen output (surface-mounted downlights): approx. 2,327 lm – 8,854 lm
• Available colour temperatures: 2700 K, 3000 K, 3500 K, 4000 K
• Optics: ERCO Spherolit lens and collimating lens made of optical polymer
• Cut‑off angles: 30° or 40°
• Housing: aluminium profile, powder‑coated; colours: White (RAL9002), Black, Silver
• Cone: polymer, black (optional silver anti‑glare cone)
• Ceiling fixture material: metal
• Control gear: switchable, phase dimmable, or DALI dimmable; uniform group behaviour and fine dimming down to 0.1% via DALI
• Typical application areas: foyers, public buildings, theatres, atria, lecture halls and other rooms with high ceilings
• Downloads: product brochure (PDF) and product images (ZIP)
