Surface mounted downlight COMPAR QUADRATISCH

LEDsquareflat

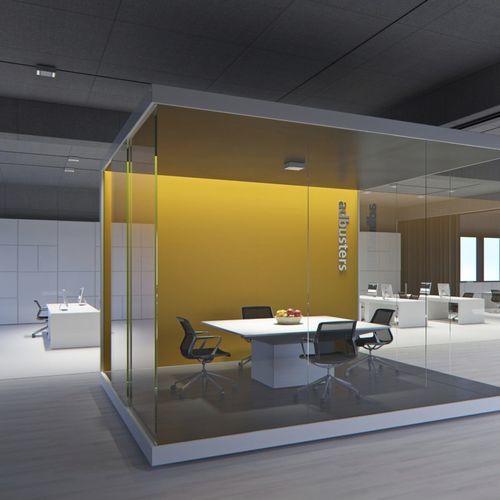

Compar square is a compact surface-mounted luminaire family offering versatile lighting technology for offices, administration and public buildings. It features a flat, discreet housing, multiple light distributions and options for high visual comfort and efficient general lighting.

Special features

• Louvres for efficient visual comfort: Louvre restricts the view into the luminaire to achieve efficient visual comfort with an emission angle of 90°. Anti‑glare louvre available in black or silver to match ceiling material and colour.
• Suitable for office workstations: Designed for good glare control and high visual comfort (UGR values as support for norm‑referenced lighting; arrangement dependent).
• Small luminaire dimensions: Compact luminaire dimensions for discreet appearance and suitability in smaller rooms.

Product description
Surface‑mounted luminaires for rooms with solid ceilings and for simple modernisation. Compar luminaires are available for office spaces and many other applications in administration or public buildings. With their flat, compact housing they blend into the architecture. Three wattages and different light distributions allow nuanced lighting concepts for low to high rooms. Compar is optimised for office workplaces with high visual comfort and is also cost‑efficient for circulation zones and foyers due to large luminaire spacing.

Individualisation / Variants (examples)

• Anti‑dazzle louvre: coated matt gold, matt silver or matt champagne
• Housing: further bespoke colours available (customer‑specific colour options on request)

Product features in detail

• ERCO lens system
  • Material: optical polymer
  • Available light distributions: wide flood, extra wide flood, oval wide flood, oval flood
• ERCO LED‑module
  • High‑power LED
  • Correlated colour temperatures: warm white (2700K, 3000K) and neutral white (3500K, 4000K)
• Louvre
  • Materials/finishes: polymer (black lacquered) or aluminium vapour‑deposited (silver, mirror‑finish)
  • Cut‑off angle: 30° (anti‑glare louvre with 90° emission angle for visual comfort)
• Housing
  • Standard colour: White (RAL 9002)
  • Construction: cast aluminium / polymer, powder‑coated
  • Ceiling fixture: metal
• Control gear
  • Control options: switchable, phase dimmable, or DALI dimmable
  • Phase dimmable versions: compatible with external (trailing edge) dimmers

Characteristics / technical specifications

• Light distributions: wide flood, extra wide flood, oval wide flood, oval flood
• Light source (downlights): LED power range 11.7 W – 37.4 W
• Luminous flux range (family, example values): approx. 1,238 lm – 4,427 lm (depending on configuration)
• Colour temperatures available: 2700 K, 3000 K, 3500 K, 4000 K
• Lens material: optical polymer
• Louvre cut‑off: 30° (anti‑glare option: 90° emission control)
• Housing: cast aluminium / polymer, powder‑coated; standard RAL 9002
• Control gear: switchable / phase dimmable / DALI dimmable; phase dimmable supports trailing‑edge external dimmers
• Typical application areas: offices, administration, circulation zones, foyers and public buildings
