Surface-mounted light fixture JILLY LINEAR

LEDrectangularfor office

Jilly linear is a surface-mounted luminaire family designed for efficient, standard-compliant and ergonomic lighting of office workplaces. It features a flat housing and an anti-glare louvre combined with a high-efficiency optical system to enable wide luminaire spacing and economical lighting concepts.

Key product highlights

• Suitable for office workstations with good glare control and high visual comfort (UGR considered as guidance in planning).
• Anti-glare louvre (emission angle 90°) available in black or silver to blend with ceiling material and colour.
• Highly efficient lens system combined with an anti-dazzle louvre for visual comfort and luminous efficacy.
• Designed for rooms with solid ceilings and for uncomplicated modernisation projects.

Product description

• Flat housing and distinctive anti-glare louvre separate Jilly linear from conventional office luminaires.
• Lighting technology: highly efficient ERCO lens system together with an anti-dazzle louvre achieves both visual comfort and high luminous efficacy, enabling wide luminaire spacing in office layouts.
• Light distributions available include extra wide flood and oval wide flood for ambient/general lighting.

Options & customization

• ERCO individual service: extensive individualisation options and special variants on request.
• Anti-glare louvre finish options on request: gold matt, silver matt, champagne matt, copper matt and other colours.
• Housing colour options on request: up to 10,000 further colours available for powder-coated aluminium/profile.

Applications / Typical use

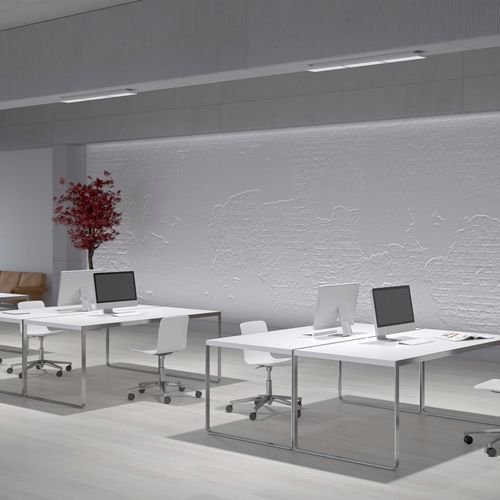

• General lighting of office workplaces and administrative spaces.
• Ambient lighting produced by wide-beam or oval wide flood distributions; recommended luminaire spacing d ≤ 1.5 × h (h = height above working plane) with offset from the wall a = d/2.

Characteristics / technical specifications

• Denomination: Jilly linear (surface-mounted luminaire family).
• Lens system: ERCO optical polymer lenses; available light distributions: extra wide flood, oval wide flood.
• Light sources: ERCO LED-modules using mid-power LEDs; colour temperatures offered: warm white (2700K or 3000K) and neutral white (3500K or 4000K).
• Example luminous data (surface-mounted downlights variant): 33.6 W; luminous flux range shown: approx. 6,293 lm – 7,416 lm (variant dependent).
• Louvre: polymer black lacquered or aluminium vapour-deposited (silver, mirror-finish); anti-glare louvre with emission angle 90°.
• Housing: White (RAL9002) standard; aluminium profile / polymer, powder-coated; ceiling fixture: metal.
• Control gear: switchable or DALI dimmable.
• Materials: optical polymer for lenses; polymer or aluminium finishes for louvre; powder-coated aluminium/profile for housing.
• Variants & finishes on request: customised louvre colours, large range of housing colours and further special variants via ERCO individual.
