Contemporary ceiling light COMPAR

linearplasticmetal

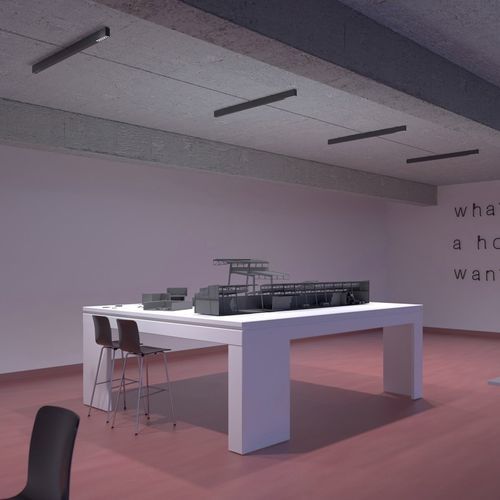

Two linear Compar modules combined in an elegant, slender profile form the surface-mounted luminaire Compar linear, designed for versatile general lighting and glare-free office workplace illumination.

Special features

• Louvre designed to restrict the view into the luminaire for efficient visual comfort with an emission angle of 90%.
• Engineered for office workstations with emphasis on glare control and high visual comfort (UGR considerations depend on layout).
• Discreet surface mounting: concealed fixing catches located in a slender shadow gap for a clean aesthetic.

Individualisation / Variants

• Anti‑dazzle louvre: matt gold, matt silver or matt champagne coatings available on request.
• Housing finishes: standard White (RAL9002) or aluminium powder-coated; up to 10,000 additional colours available on request.

Product features in detail

• ERCO lens system made of optical polymer; available light distributions: Wide flood, Extra wide flood, Oval wide flood, Oval flood.
• ERCO LED-module: high‑power LEDs in warm white (2700K, 3000K) and neutral white (3500K, 4000K).
• Louvre materials: polymer (black lacquered) or aluminium vapourised (silver, mirror‑finish); cut‑off angle 30° for defined glare control.
• Housing: aluminium profile, powder‑coated; ceiling fixture made of metal; standard finish RAL9002.
• Control gear: switchable or DALI dimmable options.

Technical specifications

• Model: Compar linear
• Light source power: 12.1 W – 18.7 W
• Luminous flux (examples for surface-mounted downlight versions): approx. 1,163 lm – 2,213 lm
• Available light distributions: Wide flood; Extra wide flood; Oval wide flood; Oval flood
• Correlated Colour Temperatures (CCT): 2700 K, 3000 K, 3500 K, 4000 K
• Housing finishes: White (RAL9002); aluminium powder‑coated; further colour options on request
• Louvre options: black lacquered polymer; aluminium vapourised silver; mirror‑finish; anti‑dazzle coatings (matt gold / matt silver / matt champagne)
• Cut‑off angle (louvre): 30°
• Mounting: surface‑mounted with concealed fixing catches in a slender shadow gap
• Control: switchable or DALI dimmable
• Typical applications: general lighting and standard‑compliant, glare‑free lighting of office workstations
