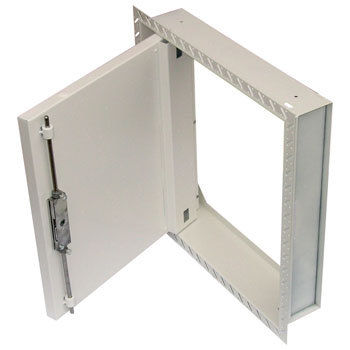

Wall access hatch PB SB

for suspended ceilingssquarestainless steel

Intro Designed to fit into any type of wall (or ceiling) system, allowing easy access into the cavity/void where regular maintenance to services is required to be carried out. Description This panel is designed to fit into the structural membrane of jointless plasterboard wall/ceiling systems and is supplied with a beaded frame. The fully removable door tray comes pre-boarded with a beaded surround. It is inserted directly into a pre-cut hole through the face of the wall/ceiling prior to wet finishes being applied. Construction Constructed from 1.2mm and 1mm thick Zintec Steel, with a polyester powder coating of matt white Ral 9010, 20% Gloss (other colours available upon request). The panels are also available in Stainless Steel for use in corrosive areas (quote using product code and ref SS). The removable flush metal door is fitted with a pin hinge and 3-point lock. Alternative lock types can be provided upon request. Dimensions Any sizes can be manufactured to order within maximum and minimum dimensional constraints. For further information please contact our Technical Sales Department.
