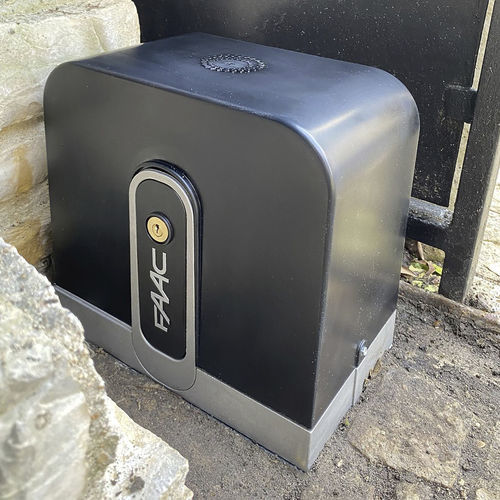

Sliding gate automation C720 24V

24V Low Voltage Gearmotor New patented FAAC reduction principle: very high output (> 80%) and energy efficiency. Magnetic limit switch. Electronic control unit with anti-crushing device and electronic encoder with reverse function upon detection of obstacle. MAX LEAF WEIGHT 400 Kg MAX SINGLE LEAF WIDTH 15 m MAX SPEED 18 m/min USE FREQUENCY Continuous use New reduction system • Extremely high mechanical efficiency: >80% (50% higher than traditional systems). • Reduced vibrations and noise: the two gears are offset by 180°, making the reduction perfectly symmetrical and balanced. • Robustness: multiple pairs of teeth engage simultaneously, distributing the load over several points. Integrated E 720 Control Board • Simple programming via LCD display • High programmability and precise adjustment of operating parameters • Compatible with both BUS and traditional photocells • 12 operating logic modes available Technical description Power supply voltage 220-240V ~ 50/60 Hz Electric motor Brush motor 24V Max power 170W Max leaf width 15 m Max leaf weight 400 kg Leaf speed 18 m/min (adjustable) Use frequency 100% Limit switch Magnetic
