Sliding gate automation C4000I

sliding

Product overview

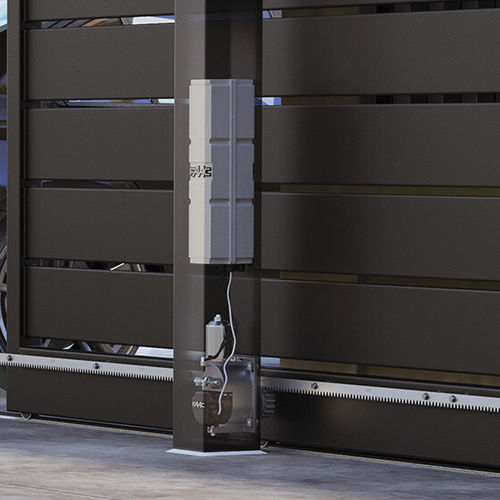

FAAC C4000I is the first gearmotor fully integrated into the post for sliding gates up to 400 kg and up to 8 metres in length. Completely concealed within the column, it automates gates without altering aesthetics and provides smooth, quiet operation suitable for residential sites.

Benefits

• Installation concealed inside aluminium or steel posts with minimum internal dimensions of 110 × 110 mm
• Preserves gate design thanks to invisible installation
• Smooth and silent movement, adapted to residential environments
• FAAC BUS 2EASY Absolute Encoder—no external limit switches required; retains position after power loss and enables accurate obstacle detection
• Easy installation with four adjustable fixing points and rack-and-pinion meshing adjustment
• Manual key release accessible from the side of the column or remotely from outside the property

Model / Item code
Model: FAAC C4000I
Item code: 109001

Technical description (summary)
Compact 24V DC gearmotor designed for integration into posts. The unit features an electronic control board and an absolute encoder for precise motion control. Four adjustable fixation points and a meshing adjustment system ensure correct alignment with the rack.

Technical specifications

• Power supply: 220-240V ~ 50/60 Hz
• Electric motor: 24V DC
• Max power: 150 W
• Max gate leaf weight: 400 kg
• Max single leaf length: 8 m
• Gate speed (max): 16 m/min
• Recommended use: Residential
• Minimum internal post dimension: 110 × 110 mm
