Sliding gate automation C851

sliding

Product overview

• Ideal for special applications where fast operation is required and a continuous service (100%).
• Irreversibility guaranteed by integrated electric brake on the powerful geared motor 1.1KW.
• Speed programming via integrated frequency inverter on the E850S control board.

Model / Item code
Model: C851
Item code: 109903
Highlights

• Max leaf weight: 1.800 kg
• Max single leaf width: 20 m
• Max speed: 40 m/min (page top)

Precise deceleration

• Two integrated mechanical limit switches with fine adjustment to guarantee precise deceleration.
• Plastic protection for belt to prevent finger injury.

Integrated E850S Control Board

• Integrated full feature control panel, easy to program through display and buttons.
• Full range of operating logics available.
• Control panel protected with dark and transparent covers to help service and maintenance.

Accessories and complements (examples shown on the page)

• E850S electronic control unit
• FDS System (FAAC Digital Signature radio protocol)
• XTO / omniDEC transmitters
• Photocells (XP 20 D, XP 30)
• XLED flashing light
• XTR B TAG reader
• XKP control keypads
• Safety Edge Radio System (XT S 868 / XR S 868)

Example installation / Gallery

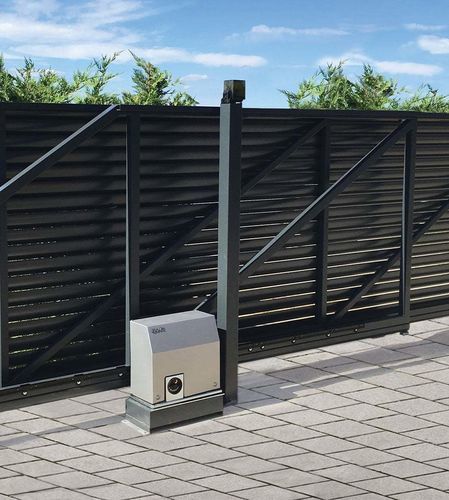

Example installation: C851 (image gallery and example installations illustrated on the page).

Caractéristiques / spécifications techniques

• Model: C851
• Item code: 109903
• Power supply voltage: 220-240V ~ 50/60 Hz
• Max power: 1.800 W
• Max expressed force: 3.000 N
• Max leaf weight: 1.800 Kg
• Max leaf width: 20 m
• Max leaf speed: 20 ÷ 40 m/min (adjustable)
• Irreversibility: integrated electric brake on the geared motor (1.1KW mentioned on page)
• Speed programming: via integrated frequency inverter on the E850S control board
