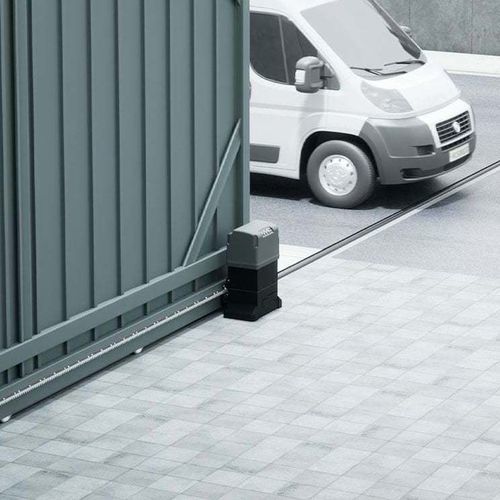

Sliding gate automation 746 C & 844 C

Overview

• Renewed FAAC gearmotors with integrated E781S LC electronic control unit providing adjustable speed settings, two dedicated safety-edge inputs (NC or 8.2 kΩ) and Bus2Easy connectivity.
• High‑performance closed‑loop motor control with high‑resolution encoder for smoother acceleration/deceleration ramps, force optimisation, reduced consumption and adjustable obstacle detection sensitivity.
• Compatibility: Compatible with the Simply Connect platform and FDS radio technology.
• Integrated low‑consumption standby: E781S LC supports a low power standby mode compliant with Ecodesign Directive 2009/125/EC and EU Regulation 2023/826. Low‑power mode can be enabled/disabled from the board menu and activates automatically after inactivity (<0.5 W standard; 2 W when connected to Simply Connect).

Key performance

• Max leaf weight: 400–600 kg (746 C) / 1,800 kg (844 C)
• Max single leaf length: 40–50 m (746 C) / 40 m (844 C)
• Max speed: 9.6–12 m/min (746 C variants) and 9.6 m/min (844 C)
• Intended use: Industrial / Commercial / Residential — continuous duty

FAAC 746 C – Technical data
Parameter | 746 C Z16 | 746 C Z20
Power supply voltage | 220–240 V~ @50/60 Hz | 220–240 V~ @50/60 Hz
Max power | 350 W | 350 W
Pinion | Z16 Module 4 | Z20 Module 4
Max torque at initial thrust | 466 N | 372 N
Max thrust force | 830 N | 665 N
Max leaf weight | 600 kg | 400 kg
Max leaf speed | 9.6 m/min | 12 m/min
Max leaf length | 40 m | 50 m
Stopping space | 30 mm | 30 mm
Type of use | Industrial/Commercial/Residential | Industrial/Commercial/Residential
Use frequency | Continuous use | Continuous use
Protection rating | IP44 | IP44
Ambient operating temperature | −20 °C – +55 °C | −20 °C – +55 °C
Thrust capacitor | 12.5 µF | 12.5 µF
Thermal protection | 120 °C automatic rearming | 120 °C automatic rearming
Sound pressure (LpA) | ≤ 70 dB(A) | ≤ 70 dB(A)
Oil | Supplied by FAAC | Supplied by FAAC
Gearmotor weight | 16.2 kg | 16.5 kg
Item code | 109745 | 109746

FAAC 844 C – Technical data
Parameter | 844 C Z16
Power supply voltage | 220–240 V~ @50/60 Hz
Max power | 680 W
Pinion | Z16 Module 4
Max torque at initial thrust | 606 N
Max thrust force | 1300 N
Max leaf weight | 1800 kg
Max leaf speed | 9.6 m/min
Max leaf length | 40 m
Stopping space | 30 mm
Type of use | Industrial/Commercial/Residential
Use frequency | Continuous use
Protection rating | IP44
Ambient operating temperature | −20 °C – +55 °C
Thrust capacitor | 18 µF
Thermal protection | 120 °C automatic rearming
Sound pressure (LpA) | ≤ 70 dB(A)
Oil | Supplied by FAAC
Gearmotor weight | 16.9 kg
Item code | 109925

Characteristics / Technical specifications

• Models: FAAC 746 C (Z16, Z20 variants) and FAAC 844 C (Z16)
• Power supply: 220–240 V~ @50/60 Hz
• Max power: 350 W (746 C variants), 680 W (844 C)
• Pinions: Z16 Module 4, Z20 Module 4 (746 C Z20)
• Max thrust force and torque: see model-specific values above
• Max leaf weight: up to 600 kg (746 C), up to 1,800 kg (844 C)
• Max leaf length/speed: up to 50 m / 12 m/min depending on variant
• Stopping space: 30 mm
• Protection rating: IP44 — operating temperature −20 °C to +55 °C
• Thrust capacitor: 12.5 µF (746 C), 18 µF (844 C)
• Thermal protection: 120 °C automatic rearming
• Sound pressure: ≤ 70 dB(A)
• Lubrication: oil bath supplied by FAAC for silent operation and extended service life
• Control unit: E781S LC with display/buttons, high‑resolution encoder, two independent safety-edge inputs and two programmable outputs
• Connectivity: Bus2Easy, compatible with Simply Connect and FDS radio technology
• Standby consumption: <0.5 W (LC mode), 2 W when connected to Simply Connect (if LC enabled)
