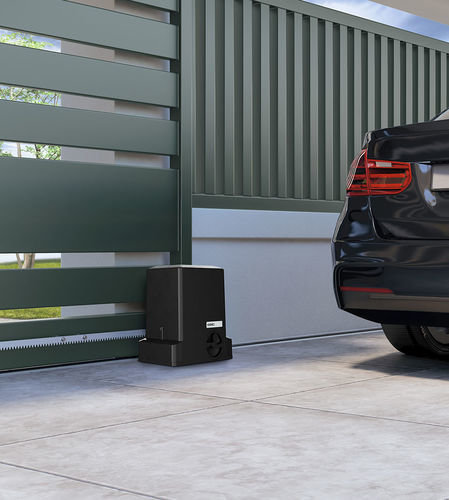

Gate automation 740 & 741

for sliding gatessliding

Overview

• Sliding gate gearmotors 740 & 741 for residential use, 230 V supply, designed for energy-efficient operation, safety and reliable performance in gate automation installations.
• Control electronics with adjustable speed, high-resolution encoder, force optimisation and adjustable obstacle-detection sensitivity.
• Integrated low-consumption standby (LC) compliant with Ecodesign Directive 2009/125/EC and EU Regulation 2023/826: when enabled, standby consumption <0.5 W (2 W if connected to Simply Connect).
• Compact modern design suitable for a range of installation contexts.

740 C - 741 C

• Gearmotor with built-in control unit offering adjustable speed, safety-edge inputs, FDS and omniDEC radio compatibility, and Bus2Easy technology.
• Low Consumption (LC) standby mode activates automatically after configurable inactivity to reduce power draw.
• High-performance motor control with high-resolution encoder for smooth movement, force optimisation and reduced energy use.

740 E - 741 E

• Updated aesthetics corresponding to the product line evolution.
• Easy programming via display and prewired control unit.
• Magnetic limit switch.
• Integrated encoder with reversal on obstacle detection and dedicated management during opening and slowdown phases.

Key performance highlights

• Max leaf weight: 500 kg (740) – 900 kg (741).
• Max single leaf width: up to 15 m.
• Max speed: 12 m/min (marketing references up to 14 m/min for some variants).
• Stopping space: 25–30 mm depending on model.
• Intended use: residential; protection rating IP44; ambient operating temperature −20 °C to +55 °C.

Electronic boards and control units

• E781S LC: intuitive programming with display and dedicated buttons, multiple configurable parameters and 2 programmable outputs; compatible with Simply Connect for remote control; supports configurable low-consumption standby (LC) mode.
• Electronic Board 740D: configuration via display with advanced programming options; two levels of programmability for installation parameters; compatible with standard photocells; offers 8 operating logics including self-learning logic for simplified setup.

Innovations and compatibility

• Technologies such as SAFEzone, GREENtech and Simply Connect identify advanced safety functions, mechanical/electronic efficiency measures and remote-control compatibility.
• Support for FDS decoding (FAAC Digital Signature) and omniDEC universal radio coding; compatibility with a range of FAAC transmitters and radio protocols.

Accessories and complementary devices

• Electronic control units: E781S LC, 740D.
• Radio transmitters and receivers: FDS System (433 / 868 MHz), omniDEC / XTO transmitters.
• Photocells and safety devices: XP 20 D, XP 30.
• Other accessories: XLED flashing light, XTR B tag reader, XKP control keypads, Safety Edge Radio System (XT S 868 / XR S 868).

Technical data (230 V~ @50 Hz) - consolidated
Parameter | 740 C | 740 E | 741 C | 741 E
Power supply voltage | 220–240 V~ @50/60 Hz (all models)
Max power | 430 W | 460 W | 530 W | 600 W
Pinion | Z16 Module 4 (all models)
Max torque at initial thrust | 380 N (740 series) | 380 N (740 series) | 570 N (741 series) | 570 N (741 series)
Max thrust force | 450 N (740 series) | 450 N | 680 N (741 series) | 680 N
Max leaf weight | 500 kg (740 series) | 500 kg | 900 kg (741 series) | 900 kg
Max leaf speed | 12 m/min (all models) (marketing mentions up to 14 m/min for some variants)
Max leaf length | 15 m (all models)
Stopping space | 25 mm (740 C / 741 C) | 30 mm (740 E / 741 E)
Type of use | Residential (all models)
Use frequency | 56 cycles/h (740 C), 22 cycles/h (740 E), 56 cycles/h (741 C), 30 cycles/h (741 E)
Protection rating | IP44 (all models)
Ambient operating temperature | −20 °C – +55 °C (all models)
Thrust capacitor | 10 µF (740 C), 12.5 µF (741 as specified per model)
Thermal protection | 140 °C automatic rearming (all models)
Sound pressure (LpA) | ≤ 70 dB(A) (all models)
Gearmotor weight | 11.9 kg (740 series) | 11.9 kg | 13.1 kg (741 series) | 13.1 kg
Item codes (examples) | 109600 (740 C) | 1097805 (740 E) | 109602 (741 C) | 1097815 (741 E)

Technical specifications

• Supply: 220–240 V~ @50/60 Hz.
• Power: 430–600 W depending on model/version.
• Max torque / thrust: up to 570 N / 680 N (741 versions).
• Max leaf weight: up to 900 kg; max leaf width: up to 15 m.
• Max speed: up to 14 m/min depending on variant.
• Protection: IP44; ambient temperature range −20 °C to +55 °C.
• Standby low-consumption mode (LC) <0.5 W (2 W with Simply Connect when connected).
• Integrated high-resolution encoder; magnetic limit switch on E versions; radio protocol compatibilities: FDS, omniDEC.
• Thermal protection with automatic rearm at 140 °C.
• Sound pressure: ≤ 70 dB(A).
