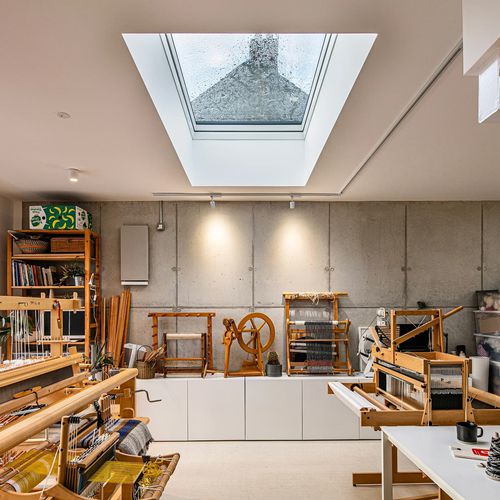

Flat roof skylight DMG P2

for ventilationwaterproofairtight

Overview
Fixed glazing for flat roofs providing natural daylight while maintaining tightness and durability. The DMG P2 is a manually operated flat roof window based on the safe P2 glazing unit; its flat glass segment gives a modern, minimalist appearance and increases interior light transmission.

Key features

• Heat transfer coefficient Uw = 0.92 W/m²K
• Sash opening up to 30 cm (manual operation via rod)
• White finish on glass segment (internal print RAL 9010) with black external aluminium profile (RAL 9005)
• Suitable for roof pitches: 2°–15° (also 5°–15° or 0° with XRD/A frame)
• P2 glazing unit: internal P2A laminated glass + external toughened glass (external glass covered by lifetime hail resistance warranty)

Details
The DMG P2 is a manually operated flat roof window with an intuitive tilt mechanism. The set includes a 220 cm control rod that enables sash opening up to 30 cm to support air circulation. The window uses a single-chamber P2 glazing unit (internal laminated P2A glass providing increased protection; external toughened glass). The frame is made of multi-chamber white PVC profiles (RAL 9010) filled with insulating material; the external cladding is black aluminium (RAL 9005). The product is appropriate for residential and public buildings and designed for long-term durability with minimal maintenance.

Installation and compatibility

• Installation options: standard installation on flat roofs, optional XRD and XRD/W installation bases for green, gravel or ventilated roofs
• Recommended roof pitches: 2°–15° (or 5°–15°); 0° possible with XRD/A frame to increase installation angle
• Includes factory-fitted flat glass segment to simplify and speed installation

Technical specifications

• Commercial size (W × H): 60x60 cm
• External frame width: 820 mm
• External frame height: 820 mm
• Window frame clear opening width: 517 mm
• Window frame clear opening height: 517 mm
• Window sash clear opening width: 476 mm
• Window sash clear opening height: 476 mm
• Window reveal clear opening width: 558 mm
• Window reveal clear opening height: 558 mm
• Window colour (interior): PVC white (RAL 9010)
• External cladding colour: Black RAL 9005
• Window material: multi-chamber uPVC profile
• Control system: Manual via control rod (ZSD rod included)
• Solar power supply: No
• Number of seals: 3
• Thermal transmittance Uw: 0.92 W/m²K
• Airtightness (air permeability): Class 4
• Wind load resistance: Class C5/B5
• Impact resistance: Class 5 - 950 mm
• Watertightness: E1200
• Acoustic insulation Rw: 36 dB
• Number of actuators (standard set): 1 manual
• Set contents: ZSD rod, Manual actuator
• Roof pitch (min.–max.): 2° - 15°
• Product weight: 40 kg
• Package dimensions (approx.): width 0.91 m × length 0.92 m × height 0.28 m
