Design software REDI-ROCK

modelingretaining wall calculationanalysis

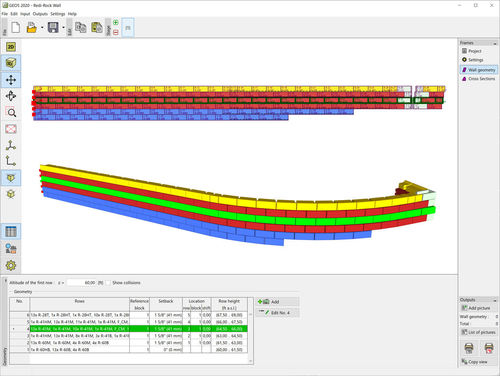

This program is used for designing advanced retaining walls using Redi-Rock retaining wall systems (USA). It allows analysis of gravity walls with Redi-Rock blocks, as well as calculation of MSE walls with Redi-Rock Positive Connection (PC) blocks and Mirafi geogrids. The basic design of Redi-Rock gravity walls can be done using GEO5 Redi-Rock Wall Freeware. Main Features Calculation of MSE walls with Redi-Rock Positive Connection (PC) blocks and Mirafi geogrids Database of blocks and setbacks produced by Redi-Rock Inc. Analysis of Gravity Wall or MSE Wall Modeling of the entire wall Verification analysis can be performed employing EN 1997-1, LRFD or classical approach (limit states, factor of safety) Verification of wall against slip and overturning Verification of slip and overturning of arbitrary part of the wall (dimensioning) Verification of bearing capacity of foundation soil in program Spread Footing Verification of slip on georeinforcement, tensile and pull-out resistance of georeinforcement Verification of connection strength Verification of internal stability for extensible reinforcements Standard - straight slip surface AASHTO – Extensible FHWA NHI-10-024 for inextensible reinforcements AASHTO – Inextensible JTGD30 - 2004 Highway China Code TB 10025 Railway China Code BS 8006 - Coherent Gravity Method Verification of global stability of a wall using a program Slope Stability Earthquake effects (Mononobe-Okabe, Arrango, Chinese standards, NCMA)
