Data management software STRATIGRAPHY – LOGS

geotechnical calculationfor steel structures

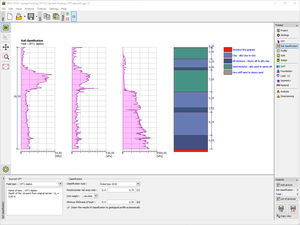

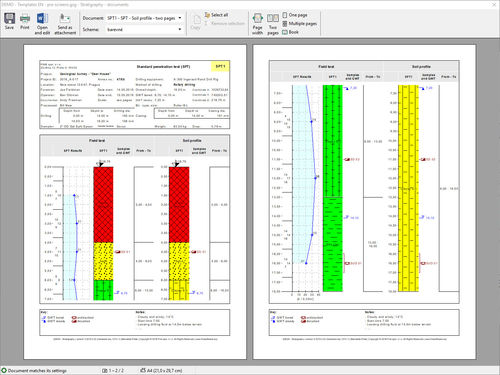

The Stratigraphy - Logs module is used for geological data reporting from site investigation (boreholes, wells, SPT, CPT, DMT and more). It provides a comprehensive database of pre-defined templates and the ability to create user-defined templates and data reports. To create cross sections use Stratigraphy - Cross Sections module. The modules are extensions of the Stratigraphy program. Stratigraphy program with Logs and Cross Sections modules are available in the “Geology package” for 1,500 € ($1,700). Main Features Professional site investigation reports including boreholes, wells, cone penetration tests, standard penetration tests, dilatometer tests, pressuremeter tests...and more Comprehensive database of pre-defined templates Ability to create user-defined templates and data reports Catalogue of patterns and color shades gINT DIN 4023 YS 5204 GEO Automatic creation of soils catalogues during input of boreholes Many types of casing, annular fills and head types for wells Print outputs to full page or in selected scales Export to wide range of formats (PDF, DXF, MS Word,…) Independent of CAD programs
