Disposable formwork Elevetor Max

PVCadjustable

Product overview
Elevetor Max is a permanent formwork system for technical backfilling and structural fill, engineered to meet high load-capacity requirements in residential, industrial and commercial buildings. The system replaces conventional filling materials by creating controlled void space, improving sustainability and reducing material volume while enabling height compensation up to 3 m.

Main components

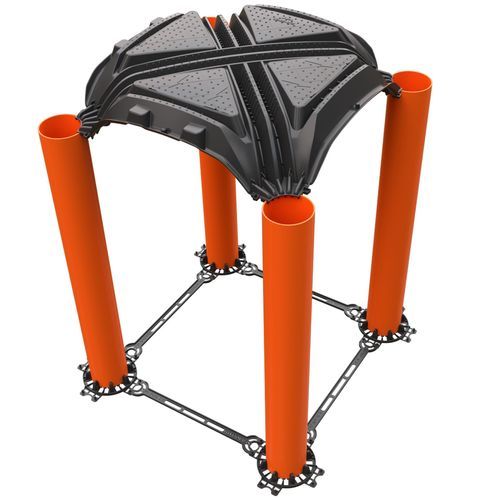

Elevetor Max is composed of a base grid, height-adjustable PVC pillars and a large top formwork (71 x 71 x 15 cm). The system is compatible with adjustable PVC pipe diameters Ø125, Ø160 and Ø200 and is designed for safe concrete pouring and long-term structural performance.

Benefits

• High declared load capacity (up to 5,000 kg/m²)
• On-site height adjustment for quick leveling
• Material savings by replacing gravel, EPS and mass concrete with void space
• High installation productivity and reduced labor time

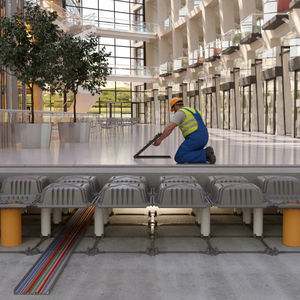

• Inspectable voids allowing access for maintenance and services

Solutions / Applications

• Lightweight structural fill
• Foundations for large buildings
• Foundations for industrial buildings
• Foundations for educational buildings
• Modular access ramps and stairs

Project example
Elevetor Max foundations installed in Ostuni, Italy (project example listed).

Installation
Detailed installation scheme and stratigraphy are provided for correct assembly and concrete pouring. The system includes reinforced pillars and a base grid designed to guarantee stability during the pouring phase.

FAQ (selected)

• Can there be any instability during the pouring phase? No — pillars are reinforced and the base grid ensures required stability during concrete pouring.
• Can this solution be applied on sloping surfaces? Yes — applicable on inclined surfaces up to 14%.

Technical specifications

• Model name: Elevetor Max
• System components: base grid, height-adjustable PVC pillars, top formwork
• Adjustable PVC pillar diameters: Ø125, Ø160, Ø200
• Top formwork dimensions: 71 x 71 x 15 cm
• Declared load capacity: up to 5,000 kg/m²
• Maximum structural filling / height compensation: up to 3 m
• Applicable on slopes up to 14%
• Primary advantages: high load-bearing capacity, adjustable height, material savings, high on-site productivity, inspectable for maintenance
• LEED points indicated: 14
