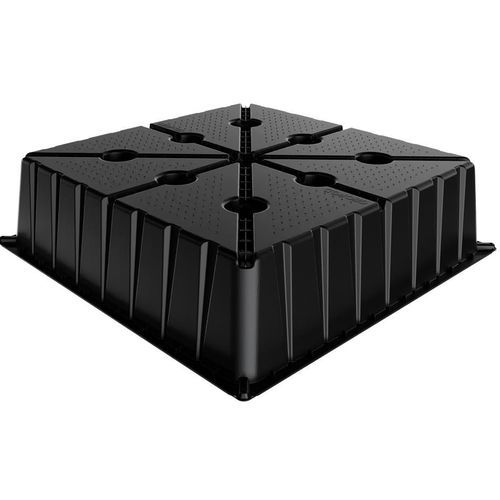

Modular formwork Geopod

permanentpolypropylenePP

Product overview
Geopod is a permanent modular formwork for waffle raft foundations and ground slabs on expansive clay soils. Manufactured in 100% recycled polypropylene (PP), the system is engineered to reduce concrete use and improve material efficiency on residential and light commercial slab projects.

Modules and sizes
The primary Geopod module measures 109 x 109 x h30 cm and forms ribs with 1200 mm centres. The range also includes Geopod-Midi (1/4 of the main pod) and Geopod-Mini (1/8 of the main pod) to allow horizontal adjustments and adaptability to site geometry.

Installation & logistics
Geopod modules are stackable and supplied with spacers for sequential pod placement, enabling fast, manual installation without specialised plant. Stackability allows approximately 95 m2 of slab coverage per single h180 cm pallet, reducing transport and handling costs.

Advantages

• AS 2870-2011 compliance for residential slabs & footings
• Sustainability: 100% recycled PP
• Concrete savings compared with conventional systems
• Reduced logistics via stackable modules
• Fast and straightforward manual setup

Solutions / Typical uses

• Waffle raft foundations
• Ground slabs on low-bearing or expansive clay soils

Selected project example
Residential building, Queensland, Australia

Technical characteristics / specifications

• Material: 100% recycled polypropylene (PP)
• Main module dimensions: 109 x 109 x h30 cm
• Rib centre spacing: 1200 mm (120 cm)
• Compliance: Australian Standard AS 2870-2011 for residential slabs & footings
• Available variants: Geopod (full), Geopod-Midi (1/4), Geopod-Mini (1/8)
• Accessories: spacers for sequential setup and manual installation
• Logistics: stackable modules covering ~95 m2 per single h180 cm pallet
