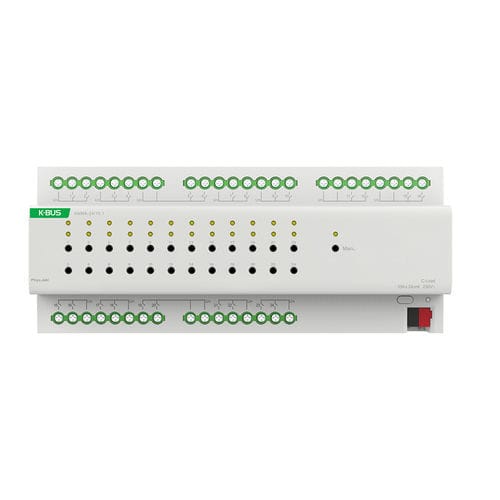

The devices can set switch outputs,AC curtain outputs,DC curtain output,fan control output and valve control output. The output requirements are configured via parameter.
Switch output: connect some electrical loads, such as lighting, sockets. All channels have the function of general switch, staircase lighting, light flashing and switch delay, scene,operation hours counter, logic and force operation;
Curtain output(AC/DC): connect with motor blinds, awnings, roller blinds, vertical blind, etc. With operating shutter and slat adjustment, automatic sun protection , scene and safety operating etc.;
Fan control: support up to three level fan speed, with general operation, forced operation, Auto. operation and status response etc.;
Valve control: connect with 2pipes or 4pipes system, support three valve control types: 3point,open and close, continuous,PWM and 2state-ON/OFF, and support disable/enable HEAT and COOL, valve status response, valve purge etc..
Heating control:support continuous,PWM and 2 state-ON/OFF,monitor and force function available
Dimension 216 mm×90mm×64mm
Installation DIN rail
Bus voltage 21-30V DC, Via KNX bus
Bus current <12mA
Bus consumption <360mW
Capacitor charge current <20mA
Un rated voltage 230V AC(50/60Hz), 30V DC
In rated current capacity 10A/105uF (max.200W, if LED load)
Max. switching current 20A/250V AC
