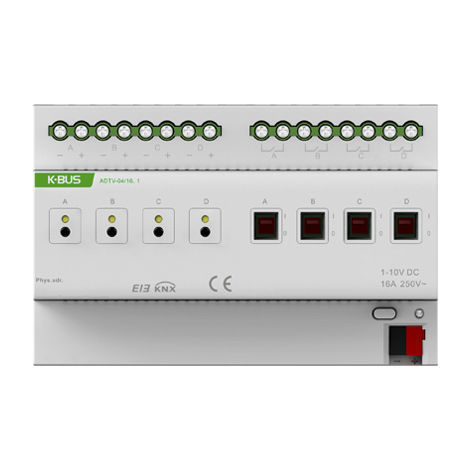

DIN rail dimmer ADTV-04/16.1for home automation systemsKNX
Add to favorites
Compare this product
Characteristics
- Assembly
- DIN rail
- Other characteristics
- for home automation systems, KNX
Description
Switching
Relative and absolute dimming
Status report, error report
Scene and preset function
Staircase lighting function
Preset a Brightness value after bus voltage recovery
Passive DC 0/1-10V drive mode
Manual operation and status indication
Bus voltage 21-30V DC, Via KNX/EIB
Bus current <12mA
Bus consumption <360mW
Output voltage 1-10V DC, max.100mA per channel
Switching current 16A/250V AC, If fluorescent lamp, max.10A/250V AC(140μF)
