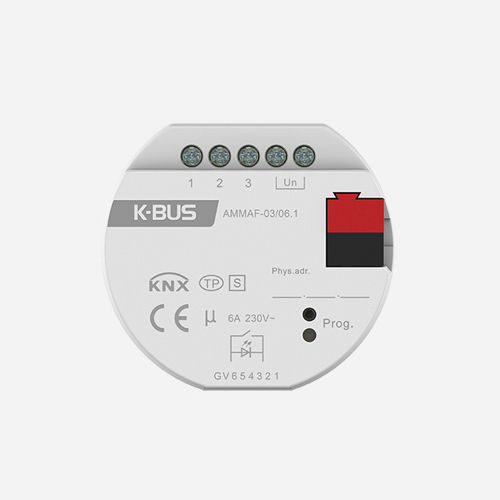

Home automation system switch actuator AMMAF-03/06.1

KNXDIN railhome

The Multifunctional Actuator, 3-Fold, 6A, Flush Mounted (Referred to as Multifunctional actuator) is a module that integrates multiple relay output functions, including switch output, curtain output, fan output or valve output, in addition to dry contact input and LED output indication functions. The corresponding output function can be configured according to actual application requirements. This module is compact and small in design, Flush mounted, and can be installed in a conventional 80 mm or 86mm wiring box. The output adopts screw terminal to realize electrical connection, and the bus connection is directly connected via KNX terminal. The additional power supply is not required except KNX bus. This module is compact and small in design, Flush mounted, and can be installed in a conventional 80 mm or 86mm wiring box. The output adopts screw terminal to realize electrical connection, and the bus connection is directly connected via KNX terminal. The additional power supply is not required except KNX bus. Dimension φ53×23.5mm Installation Standard 80mm or 86mm wall-box Operation voltage 21~30V DC, via the KNX bus Current consumption, bus <7mA Charging current, bus <20mA Power consumption, bus <210mW Un Rated Voltage 230V AC（50/60Hz），30V DC LED drive voltage 5V or 12V optional Rel. humidity< 93%, except dewing Weight 0.05KG
