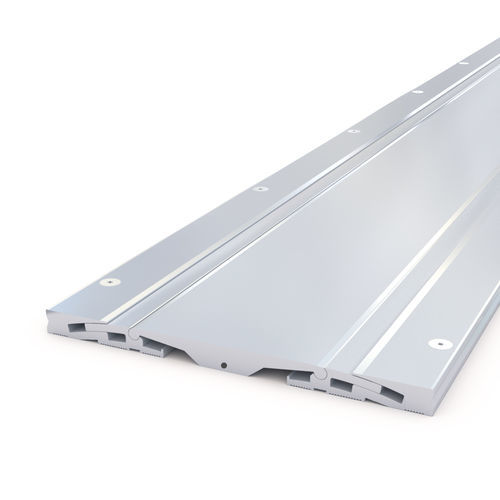

Floor expansion joint JDH 6.14

aluminumresinfor wall

All-metal floor expansion joint specially designed to withstand heavy loads: load handling equipment, lorries... Suitable for indoor and outdoor applications. Product compatible with our fire protection solutions and our waterproofing membranes Reinforced seismic expansion joint For intensive heavy-duty traffic For joint gaps from 50 to 200 mm The central elements allow significant expansion and contraction movements, as well as vertical shearing movements. Suitable for all types of finish: concrete, screed, tiling, etc. For indoor and outdoor floor joints with a gap up to 200 mm, with large amount of movements and heavy loads. Suitable for heavy traffic of fork-lift truck on solid tyres (Vulkollan), loads of up to 6 tonnes/axle on pneumatic tyres, lorries, pallet trucks and intense traffic of light vehicles. Section length of 3 m. Aluminium side angle sections, pre-drilled. Floor-to-floor and floor-to-wall types. Anti-slip ribbed surface. This product is supplied ready to install, with spacers that must be removed after installation on the floor. All metal floor expansion joint for exterior and interior use, allowing expansion and contraction of the joint as well as vertical movement and unlimited shear movement. For all types of finishes: tiles, marble, natural stone, resin, flexible floors...
