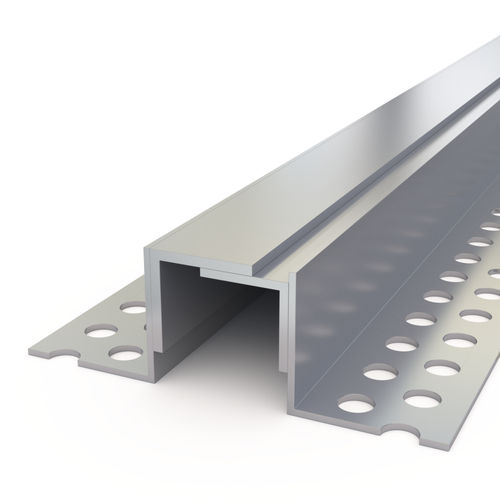

Stainless steel expansion joint JDH 6.32
for floorfor flooringfor flooring screed

Stainless steel expansion joint - JDH 6.32 - GV2 VEDA FRANCE - for floor / for flooring / for flooring screed
Stainless steel expansion joint - JDH 6.32 - GV2 VEDA FRANCE - for floor / for flooring / for flooring screed
Stainless steel expansion joint - JDH 6.32 - GV2 VEDA FRANCE - for floor / for flooring / for flooring screed - image - 2
Stainless steel expansion joint - JDH 6.32 - GV2 VEDA FRANCE - for floor / for flooring / for flooring screed - image - 3
Stainless steel expansion joint - JDH 6.32 - GV2 VEDA FRANCE - for floor / for flooring / for flooring screed - image - 4
Add to favorites
Compare this product

Characteristics

Material
stainless steel
Application
for floor, for flooring, for flooring screed, for building, concrete floor slab, for concrete structures, for pedestrian traffic
Other characteristics
seismic, waterproof, fireproof
Possible movement

Max.: 15 mm
(1 in)

Min.: 5 mm
(0 in)

Description

Product compatible with our fire protection solutions and our waterproofing membranes For difficult environment: chemistry, industry, food industry… All types of finishes: screed, natural stone, cast stone… For joint gaps from 20 to 60 mm All-stainless steel floor expansion joint for indoor and outdoor applications, comprising two side angle sections held by fixing brackets and two central elements made of stainless steel, able to take up expansion and contraction movements. Suitable for all types of finish: concrete, screed, tiling, marble, etc. For indoor and outdoor floor joints with a gap up to 35 mm. Suitable for pedestrian traffic. Section length of 3 lm. Stainless steel side angle sections. Floor-to-floor type only. Mechanical floor expansion joint for exterior and interior, made of two stainless steel side plates or aluminium upon request. For all types of finishes: tiles, marble, natural stone, resin, flexible floors... Available stainless steel finishes: mill, polished, brushed or gloss finish.
