Product compatible with our fire protection solutions and our waterproofing membranes
COLOUR :
NATURAL
VERSION :
FLAT AND ANGLE
CHARACTERISTICS :
All metal floor expansion joint
Multidirectional movement joint
For joint gaps from 135 to 340 mm

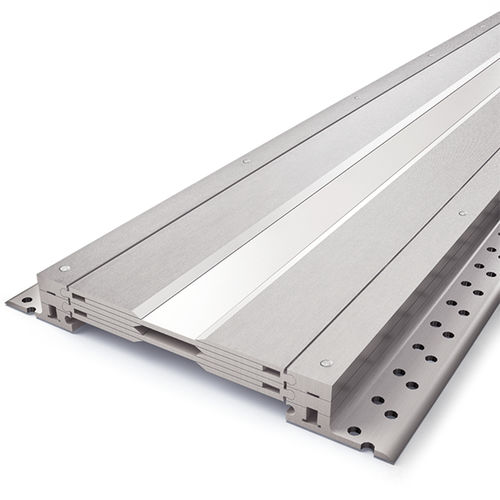

All-aluminium seismic floor expansion joint for indoor and outdoor applications. The two aluminium inner components slide one into the other, which takes up any movement due to expansion and contraction. Interchangeable upper components made of aluminium, with the option of a nitrile strip for levelling.
Wide multidirectional movement expansion joint
The multidirectional movement joint is suitable for all types of finish: concrete, screed, tiling, etc.
How to use multidirectional movement joints?
This multidirectional movement joint is suitable for intense traffic of pedestrians and light trolleys (airport, supermarkets…), as well as traffic of light vehicles.
Section length of 4 m.
Aluminium side angle sections, pre-drilled. Nitrile strip as option.
Floor-to-floor type, and floor-to-wall type with exposed skirting (type A) and hidden skirting (type AV). Ribbed anti-slip surface. Nitrile strip for levelling as option. Special finish with anti-slip nitrile inserts on request.
Special parts on demand (T, X, L…).
