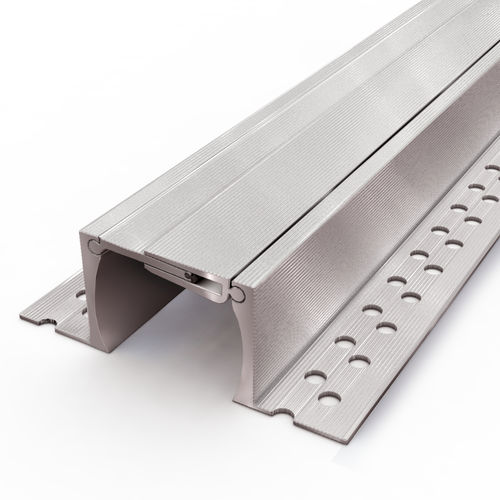

Seismic expansion joint JDH 6.08

aluminumresinnitrile

Product compatible with our fire protection solutions and our waterproofing membranes Seismic expansion joint For intensive heavy-duty traffic For joint gaps from 30 to 110 mm All aluminium seismic floor expansion joint for indoor and outdoor applications. The two top aluminium components slide one into the other, which takes up any movement due to expansion and contraction. Suitable for all types of finish: concrete, screed, tiling, etc. For indoor and outdoor floor joints with a gap up to 100 mm. Suitable for heavy traffic of fork-lift truck on pneumatic tyres, pallet trucks and intense traffic of light vehicles. Section length of 4 m. Nitrile vapour barrier. Aluminium side angle sections, pre-drilled. Floor-to-floor type, and floor-to-wall type with exposed skirting. Vapour membrane as option (for heights > 20 mm), which can be supplied as whole length to avoid joining on site. Surface finish: anti-slip ribbed or plain. Special finish with anti-slip nitrile inserts on request (426/RS range). Special parts on demand (T, X, L…). All metal floor expansion joint for exterior and interior use, allowing expansion and contraction of the joint as well as vertical movement and unlimited shear movement. For all types of finishes: tiles, marble, natural stone, resin, flexible floors...
