Glass architectural membrane NATIONAL WARSAW

PVCPTFEpolyester

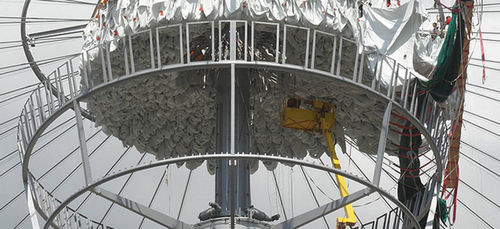

National Stadium Warsaw Warsaw, Poland Facts REALIZATION MEMBRANE STRUCTURES Hightex YEAR 2011 CITY Warsaw, Poland ROOF AREA 66000 m² FACADE AREA 20000 m² CONTRACTOR Alpine - Hydrobudowa - PBG, Poland/ Austria ARCHITECT gmp Architects, Germany ENGINEERING Schlaich Bergermann and Partners, Germany LOCATION Europe Details Opening a New Future Hightex, with its Joint Venture partners Cimolai SpA (of Pordenone, Italy) and Mostostal Zabrze Holding Sp Z.o.o. (of Katowice, Poland), it has been awarded the contract to supply the complete roof system for the new National Stadium Warsaw, Poland. The scope is for the fabrication and installation of main roof & façade steel structure, radial cable system, and fixed & retractable membrane system.This stadium is being built in connection with the UEFA 2012 European Football Championship, which will take place in Poland and the Ukraine.The roof consists of a radial cable system supporting the fixed outer portion of nearly 55,000 square metres of PTFE/glass membrane, with a retractable inner roof in the more flexible PVC/polyester membrane with a surface area of some 11,000 square metres.72 columns carry the compression ring that picks up the lower radial cables, with 72 inclined struts to pick up the upper radial cables. The total steel weight is some 12,000 tonnes. The membrane roof is arch supported with a total of 72 main bays and 72 secondary bays. The retractable roof is supported by 60 radial cables and is suspended at 960 points. In total there are 60 driving carriages and 900 sliding carriages. The interface between the fixed and retractable is composed of a glass shelf which also acts as a gutter.
