Cable-and-membrane tensile structure BARAJAS, STATE PAVILION
roofwith ETFE membranefor airport

cable-and-membrane tensile structure
cable-and-membrane tensile structure
cable-and-membrane tensile structure
cable-and-membrane tensile structure
Add to favorites
Compare this product


Characteristics

Type
cable-and-membrane
Applications
roof
Membrane material
with ETFE membrane
Market
for airport
Other characteristics
transparent

Description

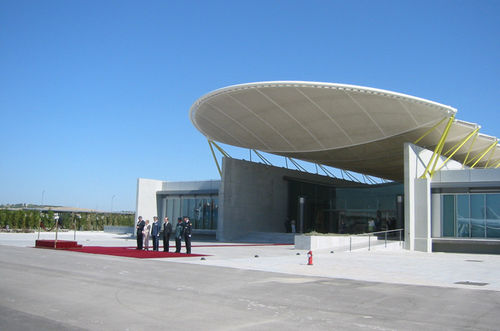

Madrid, Spain Facts REALIZATION MEMBRANE STRUCTURES Hightex YEAR 2005 CLIENT Aeroportos Espanoles y Navegacion Aerea CITY Madrid, Spain ROOF AREA 4400 m² CONTRACTOR Dragados S.A., Madrid, Spain ARCHITECT R. Rogers London & Studio Lamela, Madrid ENGINEERING Schlaich Bergermann & Partners, Stuttgart LOCATION Europe Details Reception of Royal and Political Dignitaries Richard Rogers Partnership, London and Studio Lamela, Madrid designed this independent terminal building with appealing and elegant architecture for the reception of royal and political dignitaries. The double layered membrane above the transparent entrance hall roof provides a prominent design feature and also serves as weather protection. The primary structure of the membrane roof consists of ten double arched vertical steel trusses and the two visor beams cantilevering out at each end. The upper and the lower membrane in conjunction with the valley cables in the centre of each bay and layer stabilise the structure. Overall the “Pabellón de Estado” has a very appealing and compelling design and was completed with a very professional co-operation of all participants of this project. used materials MATERIAL ETFE foil PTFE Glass
