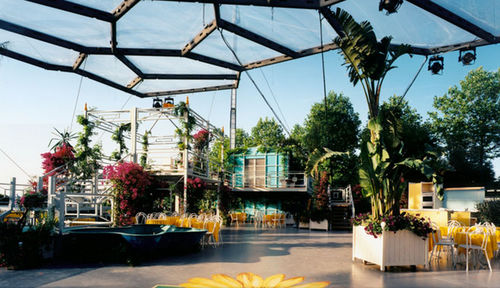

Cable-and-membrane tensile structure ZDF TELEVISION CENTRE

roofwith ETFE membranefor special events

Facts REALIZATION MEMBRANE STRUCTURES Koch Hightex GmbH YEAR 1997 CLIENT ZDF, Mainz, Germany CITY Mainz, Germany ROOF AREA 1200 m² ARCHITECT Alfred Speer & Partners, Frankfurt / Main, Germany ENGINEERING Bollinger & Grohmann, Frankfurt / Main, Germany LOCATION Europe Details The television garden site with an area of 1,200 square meters was roofed over with a highly transparent ETFE featuring a translucency of 95 percent. The air supply of the cushions is weather controlled and thus adaptable to the prevailing weather conditions. In order to achieve the light floating character of the membrane roofing, a group of building planning firms developed a steel construction consisting of six pylons, from which a steel grid is suspended. The grid contains 47 compartments, 44 of which are ETFE filled. Their structure and transparency create the illusion of being in the open. The sophisticated concept was achieved due to close cooperation of Architects, Engineers and Koch Hightex GmbH, the predecessor of Hightex. used materials MATERIAL ETFE foil
