Thermal-acoustic insulation ISOVENT®
stone woolrigid panelinterior

thermal-acoustic insulation
thermal-acoustic insulation
thermal-acoustic insulation
Add to favorites
Compare this product


Characteristics

Type
thermal-acoustic
Material
stone wool
Format
rigid panel
Location
interior
Use
for ventilated roofs
Technical characteristics
high-performance
Fire Class
Class A1
Options
with vapor barrier, with waterproofing membrane
Thermal conductivity

0.038 W/(m.K)

Thermal resistance

Max.: 4.21 m²K/W

Min.: 1.57 m²K/W

Thickness

Max.: 1,850 mm (72.83 in)

Min.: 115 mm (4.53 in)

Length

120 cm (47 in)

Width

100 cm (39 in)

Description

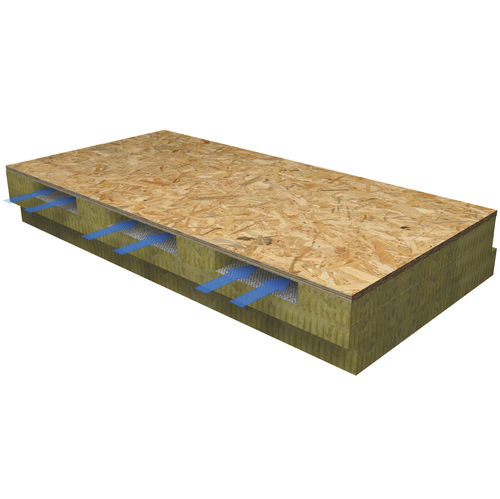

Sheathing acoustic panel for roofs made from bisoluble EC branded rockwool in conformity with EN 13162:2001, obtained from the fusion and spinning of natural rocks. It boats high resistance to compression, it naturally has good thermal characteristics and excellent sound proofing characteristics. Resistance to chemical agents and resistance to ageing is guaranteed. Rockwool is bisoluble, conforms to Section Q of European Directive 97/69/EC, acknowledged in Italy in 1998, non harmful to health. A double layer heat-sealed sheet with external nebulized PP in aluminium is applied to ventilation channels to ensure an exceptionally high heat reflectivity coefficient. Everything is combined with a EUROSTRAND OSB non-slip panel Panel dimension: 1,200 x 1,000 rabbeted Standard thicknesses available: (50+50+15) - (80+50+15) - (100+50+15) - (120+50+15) mm Osb thickness: 15 mm
