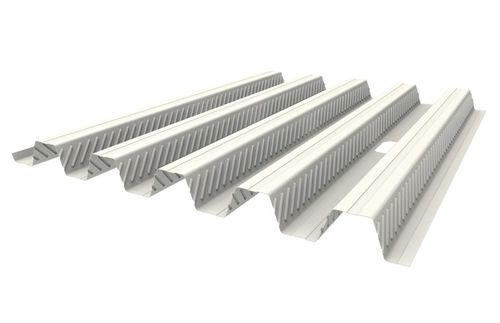

Composite structural floor JI 60-160-800

steel

Overview
JI 60-160-800 Prépercé is a specific preparation of JI 60-160-800 designed for composite construction installation on joists already fitted with welded connectors. The composite deck complies with the PACTE Professional Recommendations of July 2020. Production of JI 60-160-800 Prépercé is quality certified QB03, certificate no. 362-521. When prelacquered, the lacquered face is the SO face.

Dimensions
Length: Min. 1500.0 mm / Max. 13600.0 mm
Width: Max. 800.0 mm

Thickness and surface weight
0.75 mm: 9.13 kg/m²
0.88 mm: 10.71 kg/m²
1.00 mm: 12.17 kg/m²

Material
Steel S320 GD

Available coatings

• Interieurcoating 912 (15 µ) — base coating for interior construction applications only.
• Galva

Reference standards
Galvanized steel: NF EN 10346:2015 - NF EN 1090-4:2018 - tolerances according to NF EN 10143:2006 - NF P34-310:2017
Coil coating: NF EN 10169:2022 - NF EN 1090-4:2018 - NF P34-301:2017
Tolerance: EN 1090-4:2018 (Geometry)
Calculations: PACTE 2020 Professional Recommendations for steel-concrete composite floors

Technical characteristics / specifications

• Commercial name: JI 60-160-800 (Prépercé variant for composite construction)
• Use: Composite floor decking for installation on joists fitted with welded connectors
• Compliance: PACTE 2020 Professional Recommendations
• Certification: QB03, certificate no. 362-521
• Material: Steel S320 GD
• Available lengths: 1500.0 mm to 13600.0 mm
• Maximum width: 800.0 mm
• Thicknesses and surface weights: 0.75 mm = 9.13 kg/m²; 0.88 mm = 10.71 kg/m²; 1.00 mm = 12.17 kg/m²
• Coatings: Interieurcoating 912 (15 µ) — interior; Galva
• Standards: NF EN 10346:2015, NF EN 1090-4:2018, NF EN 10143:2006, NF P34-310:2017, NF EN 10169:2022, NF P34-301:2017
