Ribbed sheet metal JI 60-160-800

steelfor permanent formworkfor flooring

Presentation

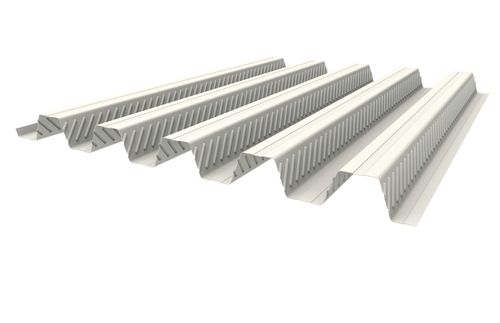

JI 60-160-800 is a ribbed steel decking with embossments in the webs designed to form and reinforce composite steel–concrete floors. The decking complies with the PACTE Professional Recommendations of July 2020. When JI 60-160-800 is pre-painted, the lacquered face is the SO face. Production is certified QB03, certificate no. 362-521.

Use
Designed for steel–concrete composite floor formwork; installation according to PACTE 2020 professional recommendations for composite floors.

Dimensions
Length: Min. 1500.0 mm / Max. 13600.0 mm
Width: Max. 800.0 mm

Thickness and weight

• 0.75 mm : 9.13 kg/m²
• 0.88 mm : 10.71 kg/m²
• 1.00 mm : 12.17 kg/m²

Material
Steel S320 GD

Coatings / Finishes

• Interiorcoating 912 (15 µ) — base coating for indoor construction applications only
• Galvanized (zinc-coated)

Compliance and standards
Galvanized steel: NF EN 10346:2015 - NF EN 1090-4:2018 - tolerances according to NF EN 10143:2006 - NF P34-310:2017
Coil coating: NF EN 10169:2022 - NF EN 1090-4:2018 - NF P34-301:2017
Tolerance: EN 1090-4:2018 (Geometry)
Calculations: PACTE 2020 Professional Recommendations for steel–concrete composite floors

Technical remarks
The lacquered face (if pre-painted) is the SO face. Product certified QB03 (certificate no. 362-521).
