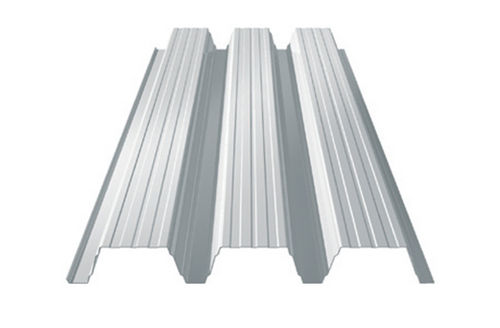

Ribbed sheet metal JID 106-250-750

steelself-supportingfor permanent formwork

Product description
The JI 106-250-750 is a ribbed steel sheet designed for flat roofs in industrial and tertiary buildings. Thanks to its high stability, it enables large spans, reducing the need for intermediate support structures. This waterproofing support is available in multiple sizes and can be delivered with an optional interior coating for enhanced durability.

Dimensions
Length: Min. 1500.0 mm / Max. 13500.0 mm
Width: Max. 750.0 mm

Thickness & weight
0.75 mm: 9.73 kg/m²
0.88 mm: 11.42 kg/m²
1.00 mm: 12.98 kg/m²
1.25 mm: 16.22 kg/m²

Characteristics

• Material: Steel S320 GD
• Intended use: Ribbed steel sheet for flat roofs (industrial and tertiary buildings)

Coatings

• Interieurcoating 912 (15 µ): Basic coating for indoor building applications only.
• Galva

Reference standards
Galvanized steel: EN 10346:2015 - tolerances according to EN 10143:2006
Coil coating: EN 10169:2022
Tolerance: EN 508-1:2021 (Geometry)
Calculations: EN 1993-1-3:2006

Technical specifications

• Product name / model: JI 106-250-750
• Lengths available: 1500 mm – 13500 mm
• Maximum width: 750 mm
• Available thicknesses and weights: 0.75 mm (9.73 kg/m²), 0.88 mm (11.42 kg/m²), 1.00 mm (12.98 kg/m²), 1.25 mm (16.22 kg/m²)
• Material: Steel S320 GD
• Optional interior coating: Interieurcoating 912 (15 µ) for indoor applications
• Coating option: Galva
• Applicable standards: EN 10346:2015, EN 10143:2006, EN 10169:2022, EN 508-1:2021, EN 1993-1-3:2006
