Ribbed sheet metal JI 60-160-800

steelself-supporting

Description

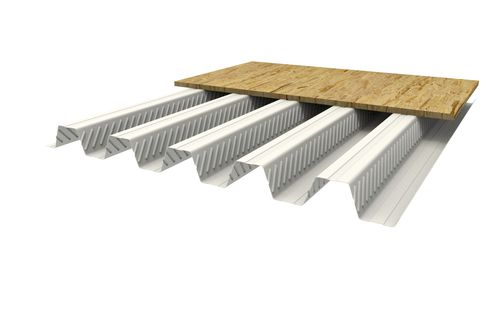

JI 60-160-800 is a ribbed steel sheet with embossments in the webs designed to form and reinforce concrete composite floors. The composite deck complies with the PACTE Professional Recommendations of July 2020. When JI 60-160-800 is pre-painted, the painted face is the SO face. Production of JI 60-160-800 is certified QB03, certificate no. 362-521.

Dimensions
Length: Min. 1500.0 mm / Max. 13600.0 mm
Width: Max. 800.0 mm

Thickness and weight

• 0.75 mm : 9.13 kg/m²
• 0.88 mm : 10.71 kg/m²
• 1.00 mm : 12.17 kg/m²

General characteristics
Material: Steel S320 GD
Available coatings: Interieurcoating 912 (15 µ) — base coating for indoor construction applications only; Galva

Standards and references
Galvanized steel: NF EN 10346:2015 - NF EN 1090-4:2018 - tolerances according to NF EN 10143:2006 - NF P34-310:2017
Coil coating: NF EN 10169:2022 - NF EN 1090-4:2018 - NF P34-301:2017
Tolerance: EN 1090-4:2018 (Geometry)
Calculations: PACTE 2020 Professional Recommendations for steel-concrete composite floors

Production & certification
Production certified QB03, certificate no. 362-521.

Technical characteristics / specifications

• Product name: JI 60-160-800
• Type: ribbed steel sheet for composite floors
• Material: Steel S320 GD
• Length: 1500.0 mm to 13600.0 mm
• Maximum width: 800.0 mm
• Available thicknesses and weight per m²: 0.75 mm (9.13 kg/m²), 0.88 mm (10.71 kg/m²), 1.00 mm (12.17 kg/m²)
• Coatings: Interieurcoating 912 (15 µ) — painted face SO when pre-painted; Galva
• Compliance and standards: NF EN 10346, NF EN 1090-4, NF EN 10143, NF P34-310, NF EN 10169, NF P34-301; PACTE 2020 recommendations for calculations
• Quality certification: QB03 no. 362-521
