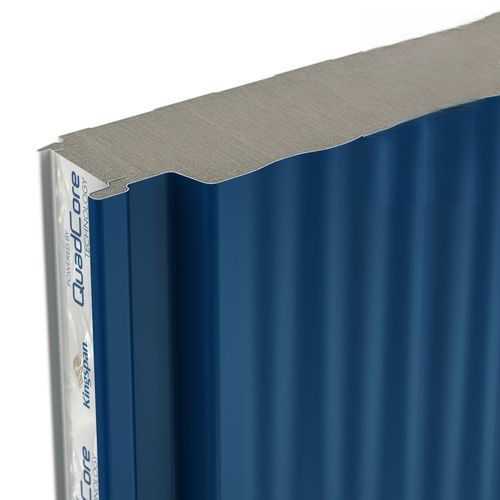

Wall sandwich panel QUADCORE AWP LEC2 metal facesinsulating corefire-retardant
Add to favorites
Compare this product
Characteristics
- Applications
- for wall
- Facing material
- 2 metal faces
- Core material
- insulating core
- Technical characteristics
- thermally-insulated, fire-retardant, fireproof, weather-resistant
- Width
1,000 mm
(39 in)- Length
Max.: 15 m
(49'02" )Min.: 1 m
(3'03" )- Weight
Max.: 13.8 kg
(30.4 lb)Min.: 9 kg
(19.8 lb)- Thickness
100 mm
(3.94 in)Max.: 167 mm
(6.57 in)Min.: 40 mm
(1.57 in)
Description
Overview
QuadCore AWP LEC Wall Panel is part of Kingspan's Lower Embodied Carbon (LEC) range. An LCA shows a 21% reduction in embodied carbon (GWP kgCO2e) for life cycle modules A1–A3 and a 17% reduction for modules A–C when comparing a 100 mm QuadCore LEC panel with standard QuadCore. The panel is designed for architectural wall applications and can be installed horizontally or vertically. It is available in a range of popular colours to support visual design intent.
Product Highlights
Profiles available
Additional information
Technical specifications
QuadCore AWP LEC Wall Panel is part of Kingspan's Lower Embodied Carbon (LEC) range. An LCA shows a 21% reduction in embodied carbon (GWP kgCO2e) for life cycle modules A1–A3 and a 17% reduction for modules A–C when comparing a 100 mm QuadCore LEC panel with standard QuadCore. The panel is designed for architectural wall applications and can be installed horizontally or vertically. It is available in a range of popular colours to support visual design intent.
Product Highlights
- 8 distinct profiles: Micro-rib, EuroBox, Mini-Micro, Convex, Wave, Plank, Tramline, Flat-Stucco
- Suitable for both vertical and horizontal applications
- Standard lengths from 1.2 m to 14.5 m (non-standard lengths available — see Technical Information)
- Factory-supplied weather seal
- Available in a range of popular colours
Profiles available
- Micro-rib
- EuroBox
- Mini-Micro
- Convex
- Wave
- Plank
- Tramline
- Flat-Stucco
Additional information
- Part of Kingspan's Lower Embodied Carbon (LEC) product range
- Can achieve a high level of fire resistance (refer to Technical Information for specific ratings and configurations)
- Designed as an insulated architectural wall panel offering design flexibility and multiple visual options
Technical specifications
- Product family: QuadCore AWP LEC
- Application: Architectural insulated wall panel
- Profiles: Micro-rib; EuroBox; Mini-Micro; Convex; Wave; Plank; Tramline; Flat-Stucco
- Orientation: Suitable for vertical and horizontal installation
- Standard lengths: 1.2 m to 14.5 m (non-standard lengths available)
- Weathering: Factory supplied weather seal
- Colours: Available in a range of popular colours
- Embodied carbon performance: 21% reduction in GWP (kgCO2e) A1–A3; 17% reduction A–C (comparison basis: 100 mm panel vs standard QuadCore)
- LCA standard referenced: EN15804-A2:2019
- Fire performance: Can achieve a high level of fire resistance (refer to Technical Information for specific ratings)
