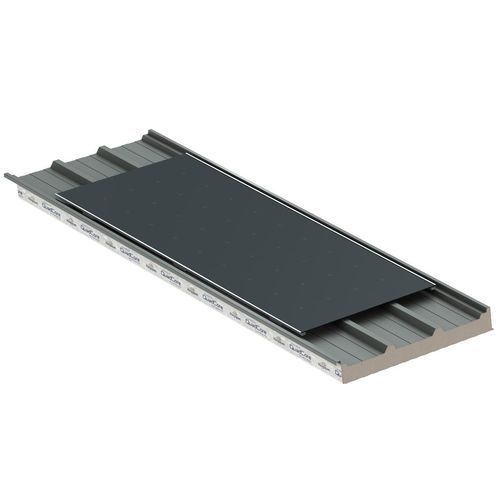

Photovoltaic module insulating sandwich panel QUADCORE POWERPANEL

aluminum facinginsulating corehigh-resistance

Overview
PowerPanel combines QuadCore thermal insulation and integrated photovoltaic modules to provide a building-integrated roofing panel that reduces heat transfer while generating up to 475 Wp per module. The system is FM Approved to FM 4478 after tests for fire, hail, wind uplift and snow loading. The slimline, factory-manufactured panel is designed for direct integration into pitched roof constructions and preserves building aesthetics.

Product Highlights

• Tested to FM 4478 standard
• U-values as low as 0.11 W/m²K
• QuadCore Technology insulation core; module output up to 475 Wp
• Suitable for pitched roof application of 4° or more after deflection
• Standard lengths from 3 to 18 m (custom lengths available)
• Factory-controlled manufacturing process

Technical specifications

• Insulation: QuadCore Technology thermal core
• U-value: down to 0.11 W/m²K
• PV module energy output: up to 475 Wp per module
• Approvals: FM Approved to FM 4478 (fire, hail, wind uplift, snow loading)
• Application: pitched roofs of 4° or more after deflection
• Standard lengths: 3 m to 18 m (non-standard lengths available)
• Manufacturing: factory-controlled production
• Design: slimline integrated photovoltaic panel for improved building aesthetics
