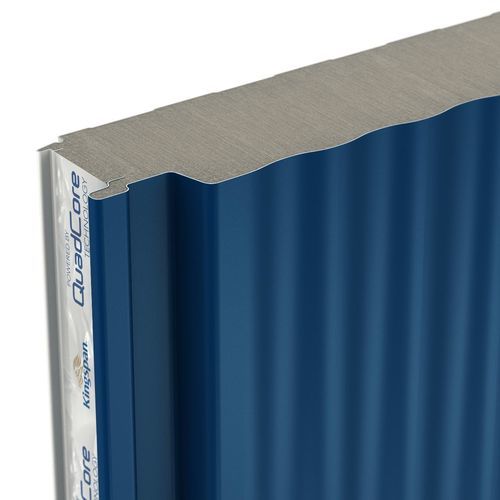

Facade cladding sandwich panel QUADCORE AWP SUPREME

for wall2 aluminum facesinsulating core

Product overview
QuadCore AWP Supreme wall panel uses QuadCore Technology to deliver fire resistance without requiring additional insulation layers. Suitable for vertical and horizontal cladding applications where 60 minutes integrity and insulation (both directions) in vertical orientation is required.

Product highlights

• Available in 7 distinct profiles: Micro-Rib, Mini-Micro, Convex, Euro-box, Plank, Wave, Tramline
• Suitable for both vertical and horizontal applications
• Factory-applied side joint seals for consistent joint performance
• Achieves 60 minutes integrity and insulation in both directions when installed vertically
• Standard lengths from 1.8 m to 14.5 m (non-standard lengths available — see technical information)

Available profiles

• Wave
• Micro-Rib
• Convex
• Euro Box
• Mini-Micro-Rib
• Plank
• Tramline

Technical specifications

• Product type: Insulated wall panels
• Technology: QuadCore Technology
• Fire performance: 60 minutes integrity and insulation in both directions (vertical orientation)
• Joint system: Factory-applied side joint seals
• Orientation: Suitable for vertical and horizontal applications
• Standard lengths: 1.8 m to 14.5 m (non-standard lengths available)
• Profiles available: Micro-Rib; Mini-Micro-Rib; Convex; Euro Box; Plank; Wave; Tramline
