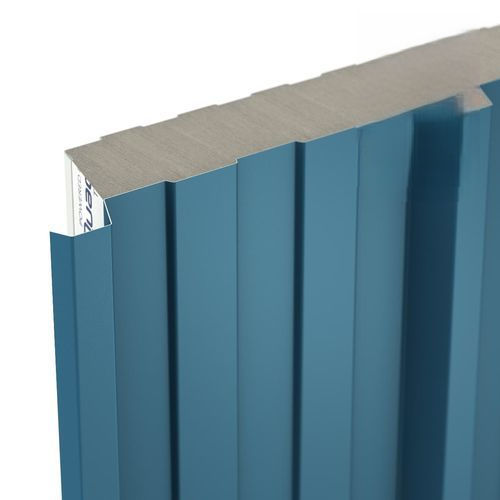

Thermal insulation QuadCore KS1000RW LEC

panelinteriorwall

Overview
QuadCore KS1000RW LEC Wall Panel is part of the Lower Embodied Carbon (LEC) product range designed for building envelopes where reduced embodied carbon is a priority. The QuadCore RW LEC is a through-fix insulated wall panel; a Life Cycle Assessment (LCA) shows ~24% reduction in embodied carbon (kgCO2e) for modules A1–A3 and ~19% reduction across modules A–C, based on a 100 mm panel compared to standard QuadCore per EN15804-A2:2019.

Product type
WALL PANELS

Product highlights

• Through-fix fixing detail for secure attachment
• Suitable for vertical and horizontal installation
• Standard lengths from 1.8 m to 14.5 m
• Available in 1000 mm panel width
• Optional factory-applied side lap weather seals

Additional information

• Part of the Lower Embodied Carbon (LEC) range for reduced life-cycle emissions
• Can achieve high levels of fire resistance (refer to manufacturer's technical documentation for classifications)
• 3D viewer available for product visualisation (no link included)

Technical specifications

• Series: QuadCore (LEC)
• Panel type: Through-fix insulated wall panel
• Standard width: 1000 mm
• Standard lengths: 1.8 m to 14.5 m
• Reference panel thickness for LCA: 100 mm (used for embodied carbon comparison)
• Embodied carbon reduction: approx. 24% (A1–A3) and 19% (A–C) versus standard QuadCore per EN15804-A2:2019 (100 mm panel comparison)
• Fixing detail: Through-fix
• Installation orientation: Vertical or horizontal
• Optional features: Factory-applied side lap weather seals
• Fire performance: Capable of achieving high fire resistance levels (see manufacturer's documentation)
