Galvanized steel smoke vent ECOFEU 160 EL

smoke and heat extractor

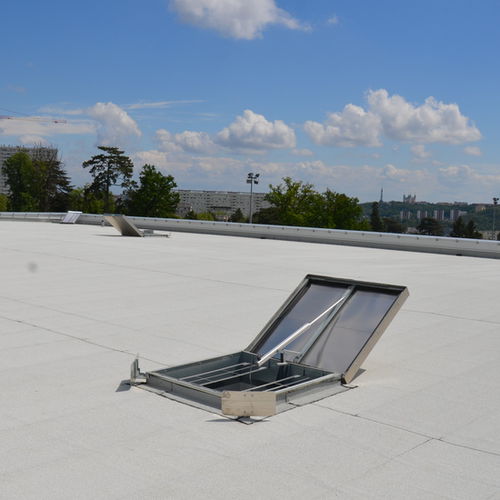

ECOFEU 160 EL (SHEV) is a CE and NF-certified smoke exhaust ventilation rooflight. This smoke exhaust vent features a 160° opening and an electric operating system. It is intended for installation in waterproofed roofs. This natural smoke ventilation system seamlessly integrates your fire safety system and can even be connected to a central fire safety control via the electric smoke exhaust ventilation control panel. The HPA option (High Aeraulic Performance) optimises aeraulic efficiency for better smoke ventilation performance. Advantages CE-marked smoke exhaust vent compliant with NF EN 12101-2. NF-SHEV marked smoke vent compliant with NF S 61-937-1. The ISO+ option optimises exhaust vent insulation: 15% better than a standard fixture. Electric ventilation as standard, no extra cost. Flexibility of electric control systems. Patented locking system offering high resistance to winds. No protruding parts under the kerb. Equipment compliant with the EU Machinery Directive (user safety)
