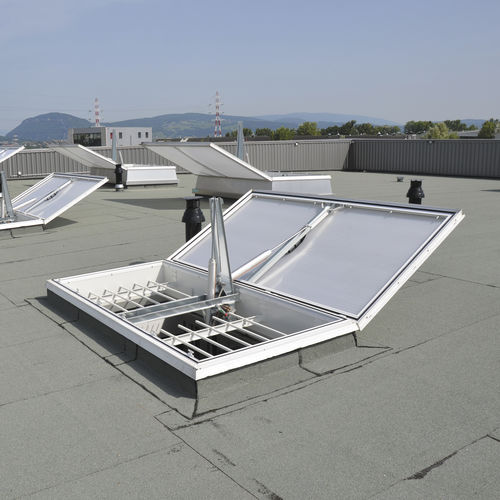

The smoke ventilator Ecofeu Premium Alu 160 PN is CE certified according to EN 12101-2, and is intended to be installed on waterproofed roofs, for a building complying with fire safety regulations.
It is composed of frames with cellular polycarbonate (PCA) filling and a thermal break upstand, Urc up to 1.3 W/m².K*, allowing smoke extraction while respecting the insulation of the building.
Airtightness is guaranteed thanks to the unique, patented locking system, which eliminates the risk of untimely openings due to wind. Heat loss through ventilation is definitively eliminated.
The Ecofeu Premium Alu 160 PN smoke ventilator with thermal bridge break allows fire safety compliance while respecting the building insulation.
Technical characteristics
Urc: 1.4 W/m².K.
TL : 38%.
MSDS: 0.41
AP: 0.4
Q50Pa: 0.18
Rw : 19(0;0) dB
For an Ecofeu Premium Alu 160 PN
PCA 32 mm opal- Ht 400 cm - 100 x 100 cm
