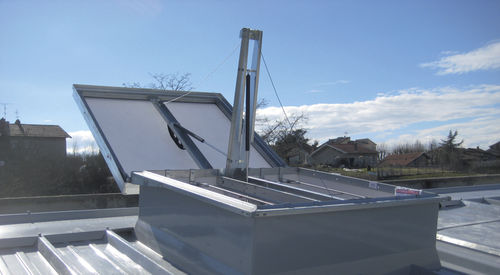

Aluminum smoke vent ECOBAC 160 TC

smoke and heat extractor

ECOBAC 160 TC is a CE- and NF-certified, pneumatically-controlled smoke exhaust vent (SHEV). With a 160° opening, this smoke vent is intended for installation in dry roofs made of fibre cement, steel, or aluminium. The GRP base is coloured to suit the roof profile. The HPA option (High Aeraulic Performance) optimises aeraulic efficiency for better smoke ventilation performance. This smoke exhaust vent features a mechanical winch control and is the most economical of our natural smoke ventilation systems that ensures compliance with Fire safety regulations. Advantages CE-marked smoke exhaust vent compliant with NF EN 12101-2. NF-SHEV marked smoke vent compliant with NF S 61-937-1. No protruding parts under the kerb. Mechanical ventilation as standard, no extra cost. Patented locking system offering high resistance to winds. Equipment compliant with the EU Machinery Directive (user safety) The ISO+ option optimises exhaust vent insulation: 15% better than a standard fixture. HPA option (High Aeraulic Performance)
