aluminum solar shading / steel / extruded aluminum / for facade
MATRIX XL

Add to MyArchiExpo favorites
Compare this product Don’t compare this product

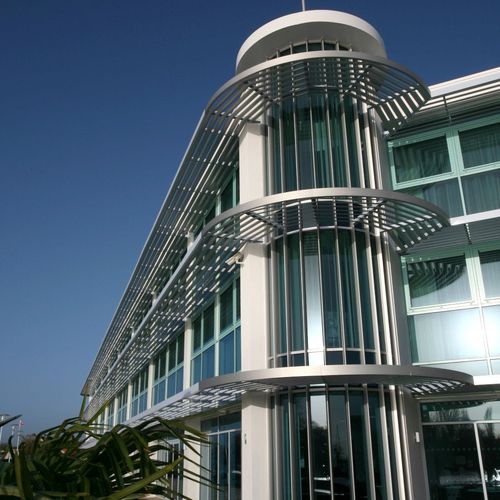

aluminum solar shading aluminum solar shading - MATRIX XL
{{requestButtons}}

Characteristics

  • Material:

    aluminum, steel, extruded aluminum

  • Applications:

    for facade

  • Other characteristics:

    horizontal, vertical, rigid

Description

Levolux’s Matrix XL Brise Soleil system provides an effective method of solar shading with the option of an integral walkway. It enhances the external appearance of new and existing buildings, whilst controlling solar heat gain to create a comfortable internal environment. With its distinctive ‘Z’ profile louvres, the Matrix XL Brise Soleil system is available in a wide range of finishes, including mill, anodised or polyester powder coated in a choice of colours. Its flexible design allows it to be used for shading, wall cladding or to create sight screens, and is complemented by Levolux’s Walk-on Brise Soleil system to ensure easy access to the façade for routine cleaning and maintenance.

All components are subject to rigid quality standards and are designed to produce a high performance product with an aesthetically pleasing finish. The main components of a Levolux Matrix XL Brise Soleil system are:

First Fix brackets – Steel or aluminium fixing brackets are available, including Levolux’s Triniti Bracket.
Support Arms – Louvres are secured between support arms that are manufactured to satisfy project specific requirements, from steel or extruded aluminium
‘Z’ Profile Louvres – The extruded aluminium louvres are manufactured to exacting standards to deliver clean, continuous lines.
‘J’ Treads (optional) – Lightweight aluminium ‘J’ section extrusions, with a non-slip grooved top surface are fixed horizontally.
Braces (optional) – ‘U’ shaped or tubular extruded aluminium bracing can be incorporated to satisfy project specific requirements.
