Guardrail pile driver LRH 100.1

for constructiondieselhydraulic

Description

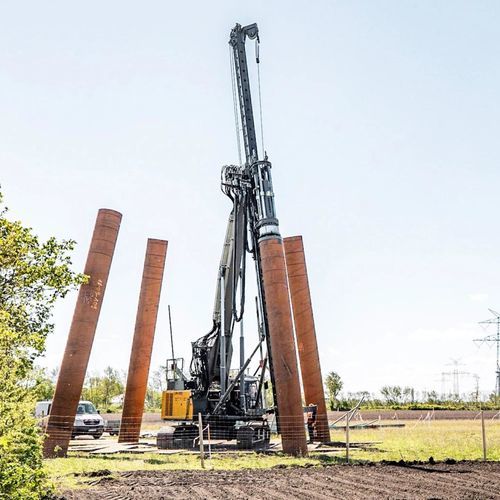

The piling rig LRH 100.1 features a flexible leader kinematics that enables large radii and inclinations up to 18° in all directions. From a single set-up the machine can install a complete pile group without repositioning the carrier. The flexible hammer system accepts different ram weights. The LRH 100.1 can drive timber, concrete and steel piles and is built on the proven LB 25 basic carrier.

Key features

• Max. pile length: 19.5 m
• Max. pile weight: 8 t
• Leader inclination: up to 18° (1:3)
• Leader reach (jib): 8.7 m
• Vertical travel device: 4 m
• Basic hammer weight max.: 9,600 kg

Additional features

• Easy transport and fast set-up: Transportable in one piece with hammer mounted to reduce site preparation time.
• Special radii and inclination: Flexible leader kinematics allow large radii up to 8 m and inclinations up to 18° in all directions, enabling a complete pile group to be installed from one location.
• Safe access: Side platforms, railings and ladders are integrated in the machine design and do not need removal for transport.
• Powerful drive technology: Liebherr diesel engine and on-board hydraulics provide required power for deep foundation works without an additional power pack.
• Innovative control: Crane control offers multiple programming and control options; machine and service data are shown on colour displays for facilitated handling.
• High service availability: Global service network and fast spare parts access ensure high uptime.

Applications

• Impact driving (hydraulic hammer) for timber, concrete and steel piles.
• Installation of piled rows from a single position, including inclined piles and large-radius requirements.
• Sites where transportability and short mobilisation time are decisive.

Technical specifications

• Operating weight: 71.3 t
• Drive: Conventional (diesel engine)
• Engine power: 250 kW
• Max. winch line pull: 108 kN
• Max. crowd force: 80 kN
• Leader inclination: 1:3 (up to 18°)
• Max. height: 24.0 m
• Max. leader/pile length: 19.5 m
• Vertical travel device: 4 m
• Max. pile weight: 8 t
• Jib length: 8.7 m
• Basic hammer weight: 6,600–9,600 kg
• Ram mass: 3,000–6,000 kg
• Predrilling max. depth: 12.0 m
• Predrilling max. torque: 12 kNm
• Min. transport width: 3,490 mm
• Min. transport height: 3,400 mm
