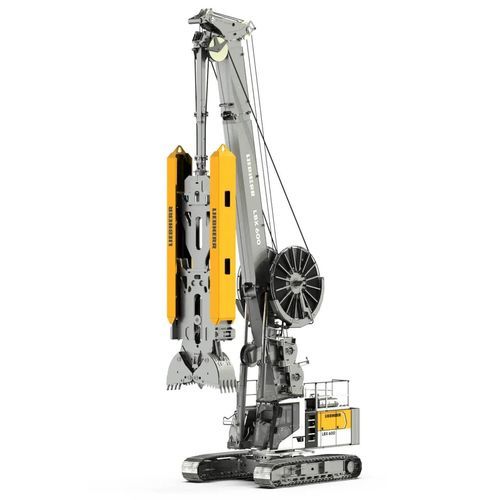

Diesel engine drilling rig LBX 600

mechanicalconstructionpiling

Overview
The carrier machine for slurry wall construction meets the requirements of urban jobsites. Its compact dimensions allow work in confined spaces. The base machine can be transported in one piece. A modular box boom enables three machine configurations and high flexibility. The LBX 600 accepts mechanical or hydraulic grabs.

Key product highlights

• Compact design for confined urban jobsites
• Modular box boom system offering three machine versions
• Compatible with mechanical or hydraulic slurry wall grabs and chisels
• Two free-fall winches delivering 450 kN line pull in grab operation and 600 kN in recovery
• Telescopic undercarriage and slim design for easy transport and set-up

Main features described

• Modular box boom: flexibility and multiple configurations
• Various attachments: hydraulic or mechanical grabs, chisel; compatible with multiple attachment types
• Powerful free-fall winches: 450 kN (grab operation) / 600 kN (recovery) line pull in dual-winch operation
• Slim/compact design: compact dimensions and telescopic undercarriage for transport and set-up

Optional equipment and digital systems

• Verticality Assistant: monitors deviations between slurry wall and grab; records productivity data
• MyJobsite: collection, documentation and analysis of process, machine, site and position data
• PDE (Process Data Recording): records machine data during operation
• LIPOS positioning system: accurate positioning for piling and drilling processes
• Ground Pressure Visualization: calculates real-time ground pressure and compares with safety limits
• Remote control: simplifies loading for transport and assembly

Applications

• Slurry wall installation with clamshell grab: excavation of slurry wall panels using clamshell grab

Technical data (table)
Max. working depth: 80 m
Max. grab weight, full: 30 t
Max. pull force in grab operation (dual-winch): 450 kN
Max. pull force in recovery mode (dual-winch): 600 kN
Drive: Conventional (diesel engine)
Engine power: 320 kW
Max. winch line pull: 2 x 300 kN
Min. transport width: 3,000 mm
Min. transport height: 3,600 mm
Operating weight: 64.5 - 72.4 t

Example attachment (Slurry wall grab HSG 5-18 C/L)

• Wall thickness: 500 - 1,800 mm
• Jaw opening width: 2,500 - 3,600 mm
• Max. closing force at teeth: 594 kN

Characteristics / technical specifications

• Max. working depth: 80 m
• Max. grab weight (full): 30 t
• Max. pull force (grab operation, dual-winch): 450 kN
• Max. pull force (recovery mode, dual-winch): 600 kN
• Drive type: Conventional (diesel engine)
• Engine power: 320 kW
• Max. winch line pull: 2 x 300 kN
• Min. transport width: 3,000 mm
• Min. transport height: 3,600 mm
• Operating weight: 64.5 - 72.4 t
• Optional systems: Verticality Assistant, MyJobsite, PDE, LIPOS, Ground Pressure Visualization, Remote control
