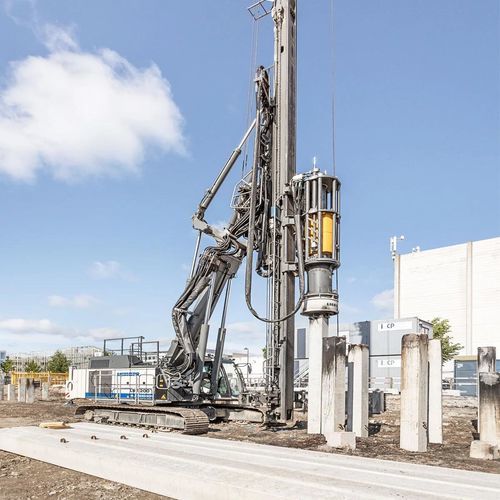

Diesel engine drilling rig LRH 200

rotarydown-the-holeconstruction

Product overview
The LRH 200 is a combined piling and drilling rig designed for foundation engineering. Its flexible leader kinematics allow large working radii (up to ~8 m) and inclinations up to 18° in all directions. The in-house hammer concept accepts a range of tamper/ram masses, enabling impact pile driving of concrete, steel or timber piles. As a drilling rig the LRH 200 provides a high-performance drilling drive for single-pass methods (CFA, full displacement, down-the-hole) and can be equipped for soil mixing. The compact carrier is based on the LB 30 platform and can be transported with the leader mounted for fast on-site setup.

Key features

• Flexible leader kinematics for large radii and inclinations up to 18° in all directions.
• Leader vertical travel ±6.5 m (total ≈13 m) for large height adjustment at the working point.
• Transport and rapid setup: carrier and leader transportable in one piece with hydraulic connections minimised.
• Flexible hammer concept supporting a wide range of basic hammer weights (~6,740–18,000 kg) and ram masses (3,000–10,000 kg).
• High-performance drilling drive for single-pass methods (CFA, full displacement, DTH) plus soil-mixing capability.
• Modern operator cabin with air conditioning, ergonomic controls and optimised visibility.
• Diesel-driven powertrain with on-board hydraulics sufficient for additional attachments without external power packs.

Applications

• Pile driving (hydraulic hammer impact, vibratory driving and related methods).
• Continuous flight auger (CFA) drilling and full-displacement drilling.
• Down-the-hole (DTH) drilling.
• Soil mixing / ground improvement (wet mixing, cutter soil mixing).
• Predrilling and other single-pass drilling processes.

Attachments / Optional equipment (examples)

• Hydraulic impact hammers (H-series) with variable ram masses.
• Mixing drives (MA series) for soil mixing applications.
• Rotary/rotary-drive units for pre-drilling and drilling (BA/BAT series).
• Winch automation, attachment recognition and operator assistance systems.
• Digital solutions: MyJobsite, PDE process data recording, LIPOS positioning, LiDAT telematics.

Characteristics / technical specifications

• Operating weight: 81.0 t
• Drive: Conventional (diesel engine)
• Engine power: 250 kW
• Max. winch line pull: 200 kN
• Max. crowd force: 200 kN
• Leader inclination: 1:3 (up to approx. 18°)
• Max. height: 29.2 m
• Max. leader length: 25.7 m
• Vertical travel device: 6.5 m above/below ground level (total ≈13 m)
• Max. pile length: 24.5 m
• Max. pile weight: 16 t
• Max. torque (drilling drive): 250 kNm
• Jib length: 7.8 m
• Basic hammer weight (min.): 6,740 kg
• Basic hammer weight (max.): 18,000 kg
• Ram mass min.: 3,000 kg
• Ram mass max.: 10,000 kg
• Predrilling, max. drilling depth: 17.4 m
• Predrilling, max. torque: 35 kNm
• CFA drilling, max. depth: 34.5 m
• CFA drilling, max. diameter: 1,000 mm
• Full displacement drilling, max. diameter: 500 mm
• Full displacement drilling, max. depth: 35.2 m
• Soil mixing, max. mixing diameter: 1,500 mm
• Soil mixing, max. effective length: 34.3 m
• Down-the-hole drilling, max. depth: 25.2 m
• Min. transport width: 3,490 mm
• Min. transport height: 3,400 mm
